PAPER EXIT August 2006
6-150
6.17 PAPER EXIT

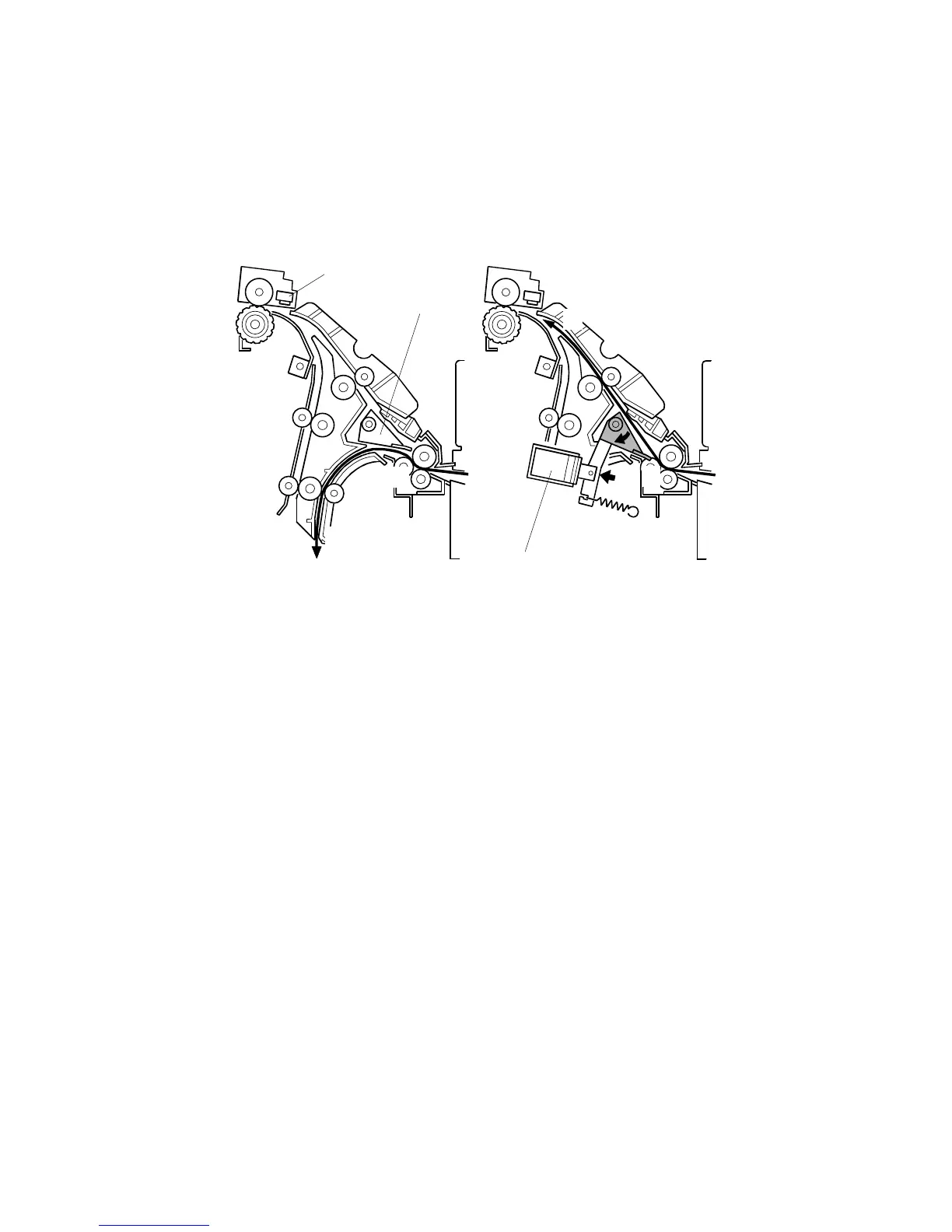

6.17.1 FACE UP EXIT MECHANISM
[A]: Inverter Junction Gate Solenoid
[B]: Inverter Junction Gate
[C]: Exit Sensor
When the inverter is used (duplex mode, or face-down output):
• Inverter junction gate solenoid [A] Æ Off
• Inverter junction gate [B] Æ Open
• Paper goes down to the inverter
When the inverter is not used (face-up output, or when paper was fed from the
bypass tray):
• Inverter junction gate solenoid [A] Æ On
• Inverter junction gate Æ Closed
• Paper goes up to the output tray
The exit sensor [C] detects the leading and trailing edge of each sheet as it feeds
out and triggers a jam if the paper is late or stops.
