REPLACEMENT AND ADJUSTMENT September 2006
B706-26

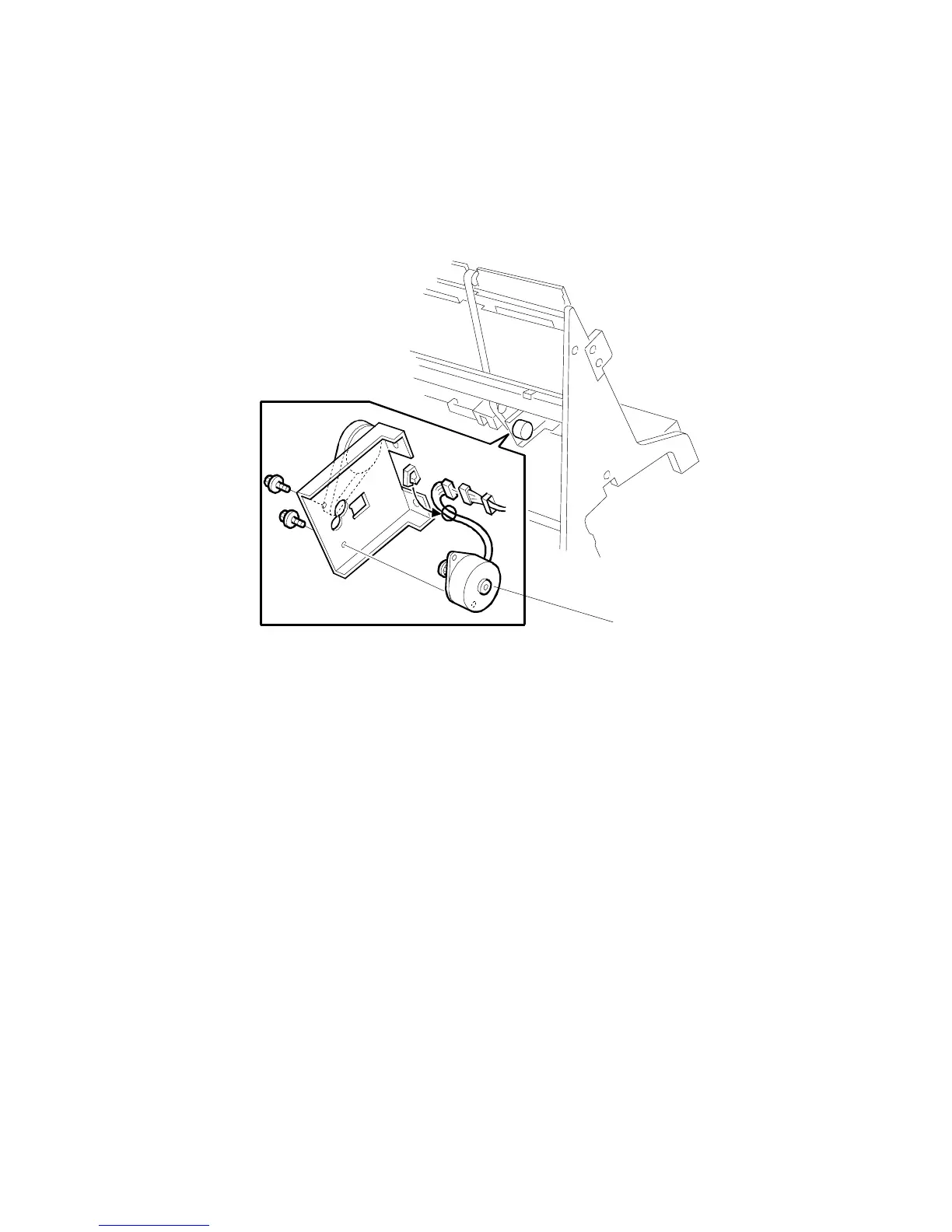

3.8.4 JOGGER BOTTOM FENCE MOTOR
1. Open the front door and pull out the stapler tray unit.
2. Remove the jogger bottom fence motor [A] ( x 2, timing belt x 1, x 1, x
1).
B706R104.WMF
B706R104.WMF
[A]
06/09
