August, 2006 ARDF

3-175

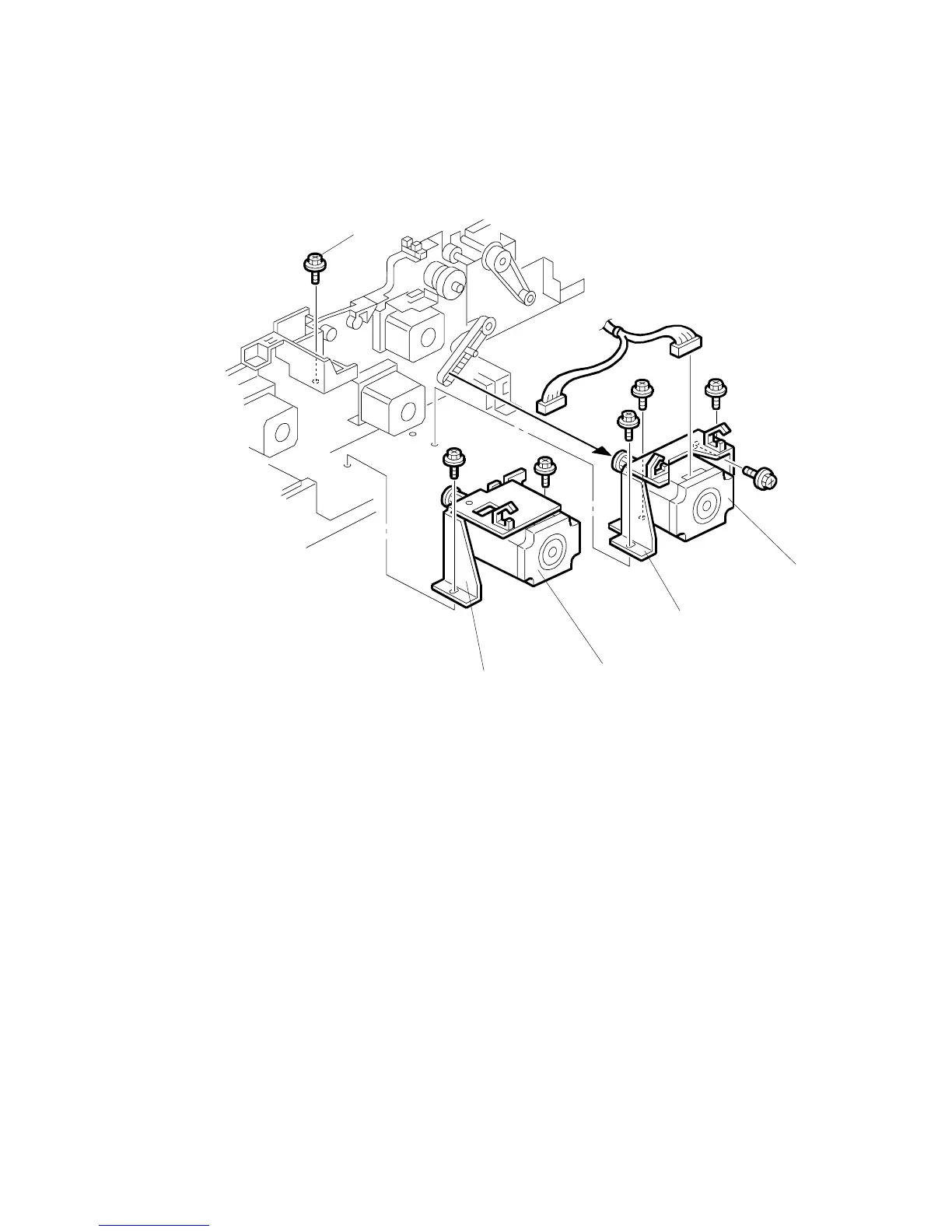

3.18.14 ARDF FEED MOTOR, ARDF TRANSPORT MOTOR

• Open the feed cover

• Remove the ARDF rear cover (3.18.1)

Important! The feed motor must be removed before the transport motor.

[A]: Screw ( x1)

[B]: Feed motor bracket ( x4,  x1, Timing belt x1, Spring x1)

[C]: Feed motor ( x2)

[D]: Transport motor bracket ( x2,  x1, Timing belt x1, Spring x1)

[E]: Transport motor ( x2)

Reinstallation

• Reinstallation is easier if you first set the spring tension with the screws and then

fasten the motor bracket with screws.

B132R123.WMF

[A]

[D]

[E]

[B]

[C]
