Toshiba e-STUDIO4500c Service Manual

August, 2006 DUPLEX UNIT
3-109

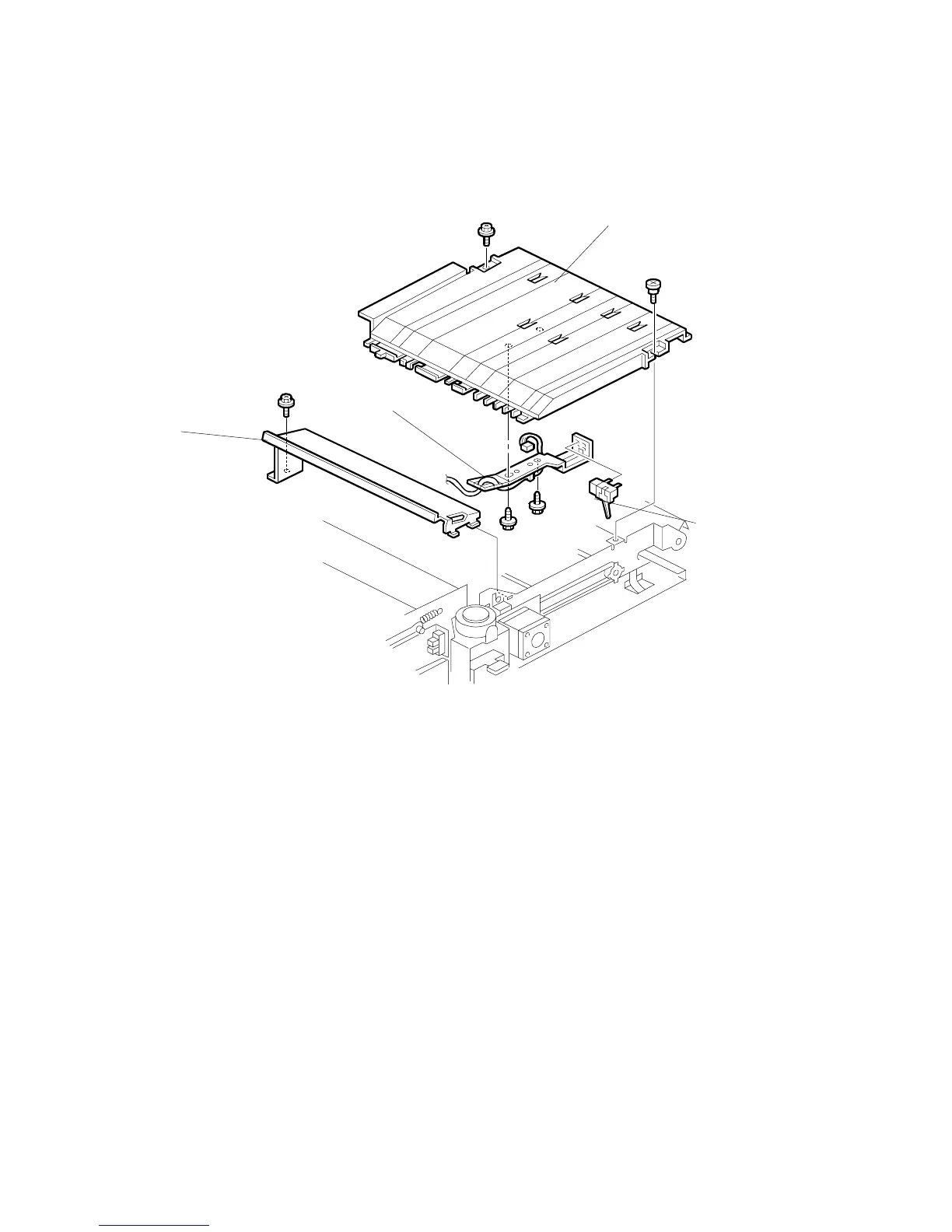

Transport Sensor 3
Remove:
[A]: Duplex unit front cover (3.10.1)
[B]: Cross stay ( x 1)
[C]: Right transport cover ( x 2,  x 1)
NOTE: The front screw is a shoulder screw. Insert the screws in the correct
holes when re-attaching.
[D]: Transport sensor bracket ( x 2)
[E]: Transport sensor 3 ( x 1)
B132R508.WMF
[A]
[B]
[C]
[D]
