Toshiba e-STUDIO4500c - Lower Area B700;B701

August 2006 ELECTRICAL COMPONENTS
B700-27
Peripherals

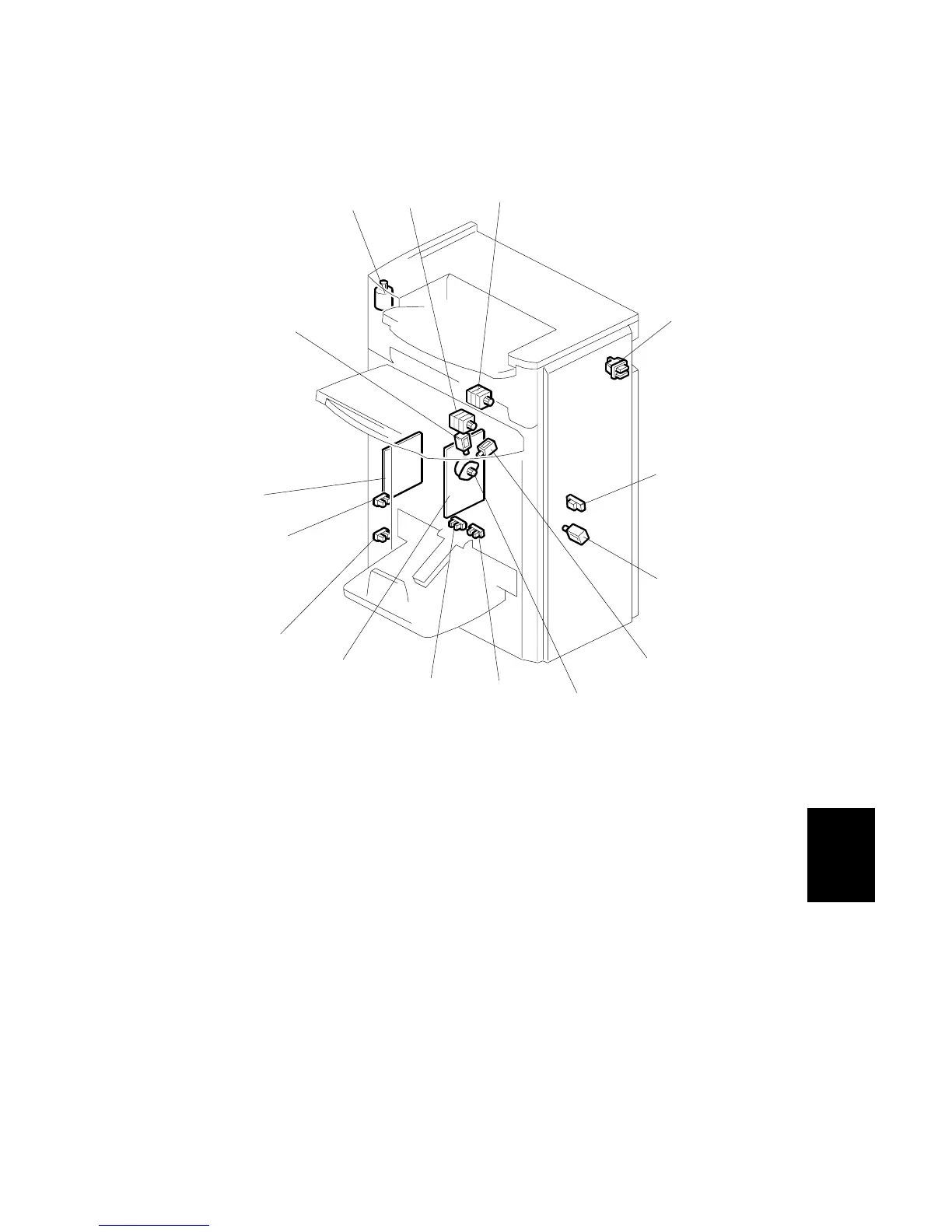

2.2.2 LOWER AREA B700/B701
1. Upper Tray Lift Motor (M21)
2. Lower Transport Motor (M3)
3. Entrance Motor (M1)
4. Front Door Safety Switch (SW1)
5. Pre-Stack Tray Exit Sensor (S2)
6. Stapling Edge Pressure Plate Solenoid
(SOL4)
7. Positioning Roller Solenoid (SOL3)
8. Positioning Roller Motor (M14)
9. Lower Tray Full Sensor – Front (S34)
*
1
10. Lower Tray Full Sensor – Rear (S33)*
1
11. Main Board (PCB1)
12. Upper Tray Full Sensor – (S20) *
2
13. Upper Tray Full Sensor – (S19)
14. Booklet Stapler Board (PCB2)
*
1
15. Booklet Pressure Roller Solenoid – (SOL5) *
1
*
1
B700 Only
*
2
B701 Only
B700D202.WMF
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
