1.3.2 INSTALLATION
Tapes and packing material
WARNING!
Always turn the machine off and disconnect the machine power cord
before you do these procedures.
Note
Be sure to place slanted support [G] made of cardboard with its hard side
[H] up when unloading the copier from the pallet using it.

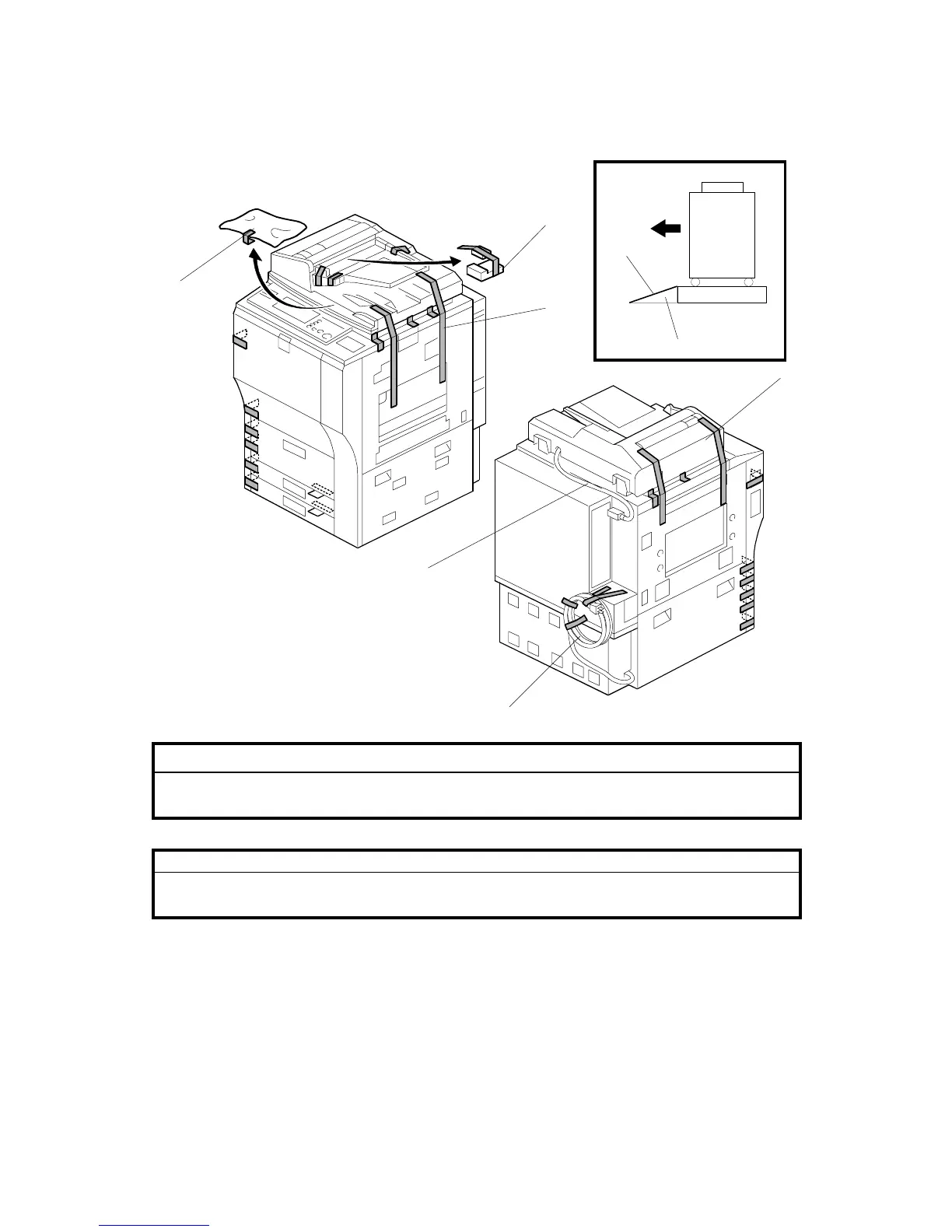

Remove all tapes and packing material from the main machine:
[A]: ARDF, right side
[B]: Packing block inside ARDF
[C]: Accessories bag. Remove other accessory bags from Tray 2, Tray 3.
[D]: ARDF, left side
[E]: ARDF connector cord. Remove tape and connect the cord
[F]: Power cord
B132I703.WMF
B132I004.WMF
[A]
[B]
[C]
B132I910A.MWF
[H]
[G]
Note
[D]
[E]
[F]
