Toshiba e-STUDIO4500c Service Manual

OUTPUT JOGGER UNIT (B703/B513) August 2006
1-102

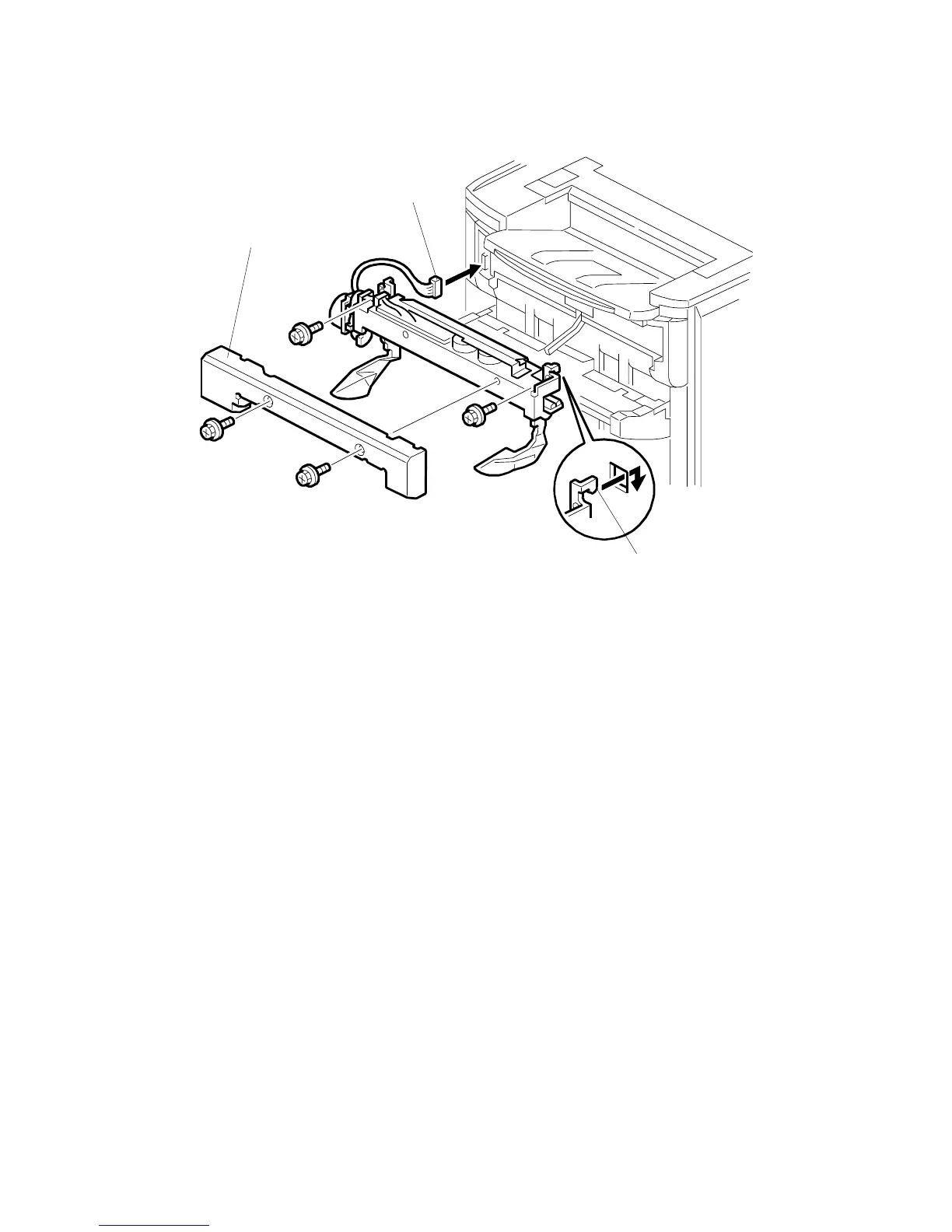

5. While you hold the jogger unit with the connector [B] on the left, put the hooks
of the frame of the jogger unit [A] into the holes in the left and right side of the
finisher frame.
6. Fasten connector [B] to the socket ( x 1).
7. Attach the jogger unit to the finisher ( x 2, M3 x 6).
8. Reattach the jogger unit cover [C] to the jogger unit ( x 2).
B703I104.WMF
[A]
[B]
[C]
