Toshiba e-STUDIO4500c Service Manual

August 2006 OUTPUT JOGGER UNIT (B703/B513)
1-101
Installation
1.13.2 INSTALLATION
1. Turn the main machine switch off.
2. Disconnect the finisher cable from the main frame.
3. Use the flat head of a screwdriver to remove the left upper cover [A].
4. Remove the cover plate [B] ( x 2). Keep the screws.

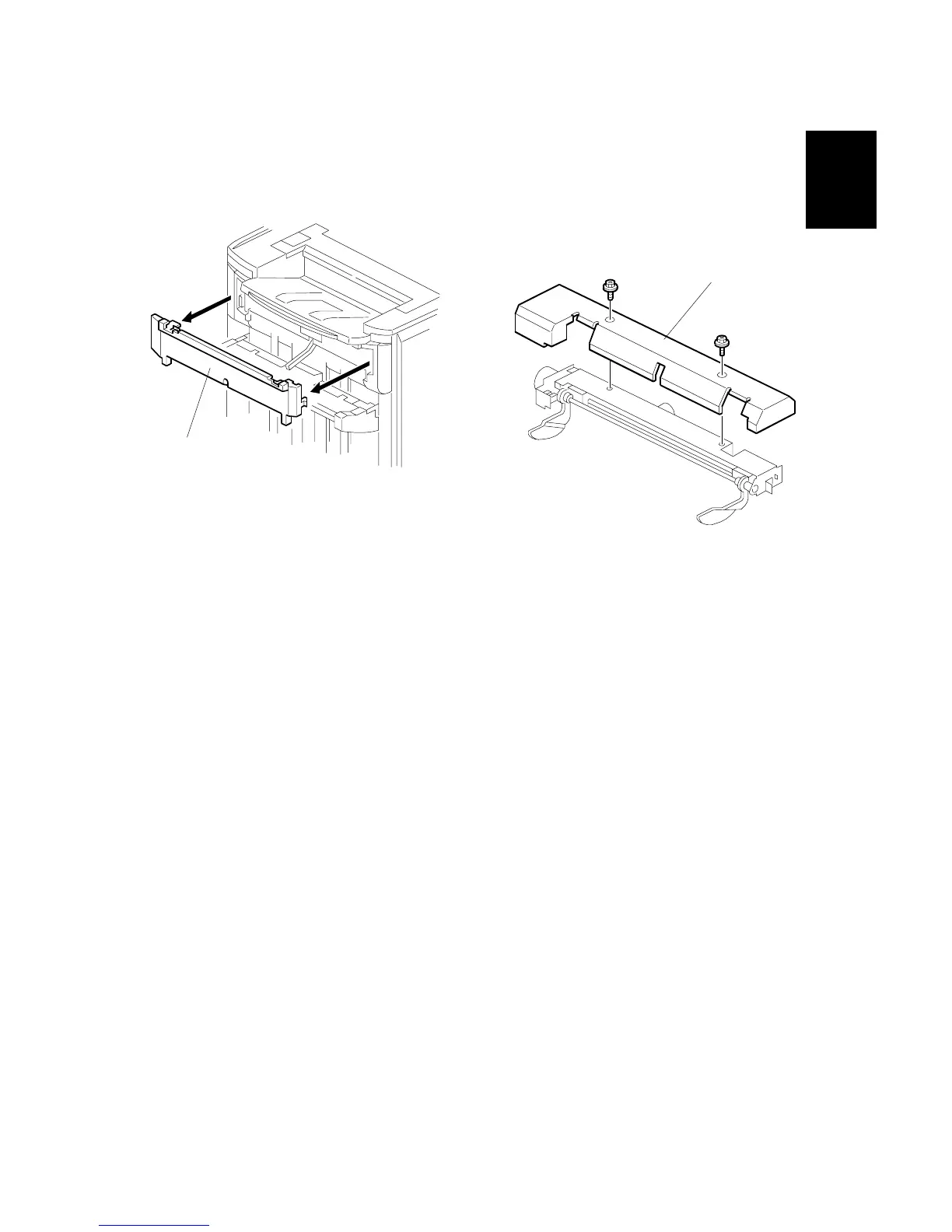

B703I103.WMF
B703I102.WMF
[A]
[B]
