Toshiba e-STUDIO4500c Service Manual

August, 2006 TANDEM TRAY (TRAY 1)
3-113

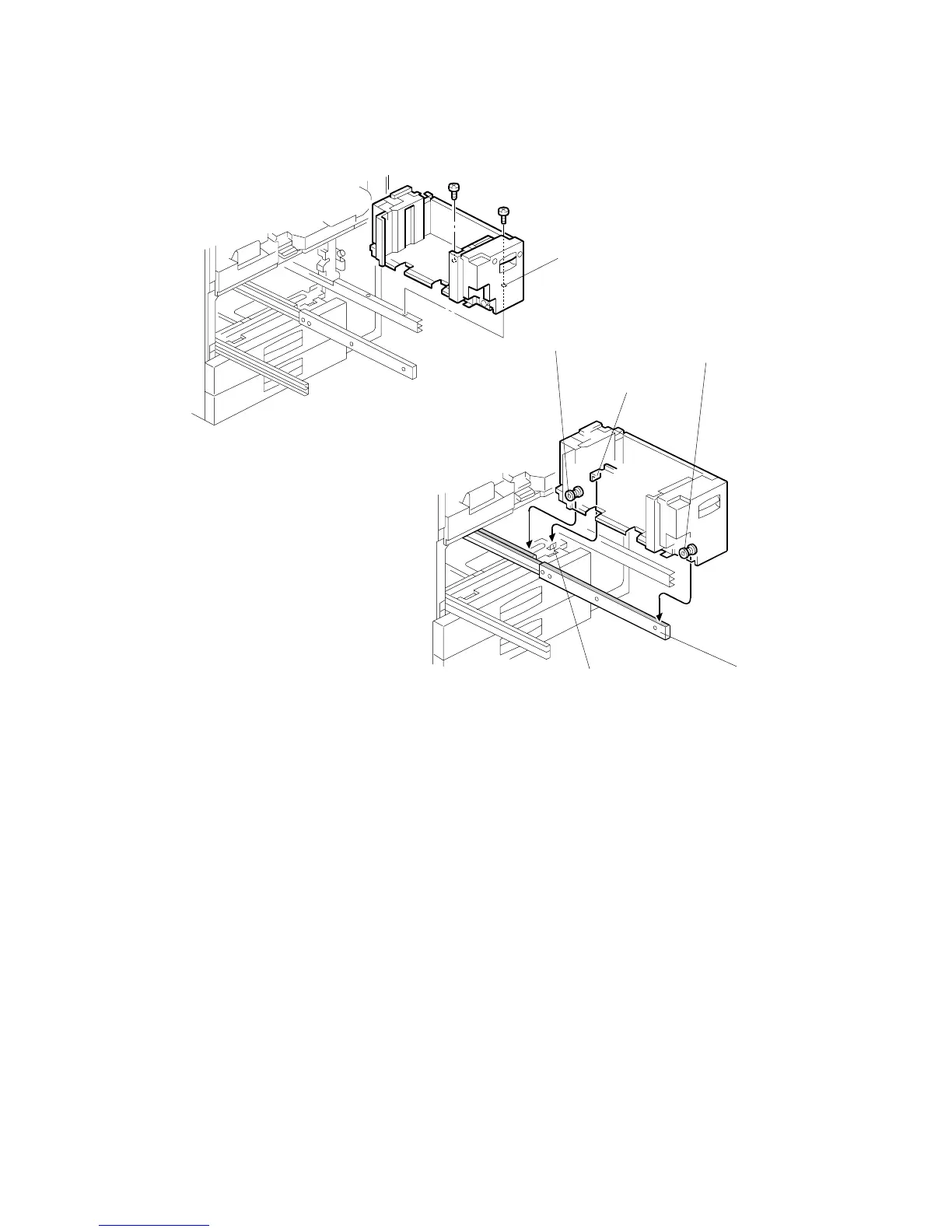

[A]: Right tandem tray ( x 2).
NOTE:
1) When re-installing the right tandem tray, make sure that the wheels [B]
ride on the slide rail [C].
2) When re-installing the right tandem tray, make sure that the tandem tray
stopper [D] is set behind the stopper [E] on the frame.
B140R822.WMF
B140R823.WMF
[A]
[E]
[D]
[C]
[B]
[B]
