August, 2006 PAPER TRANSFER UNIT

3-67

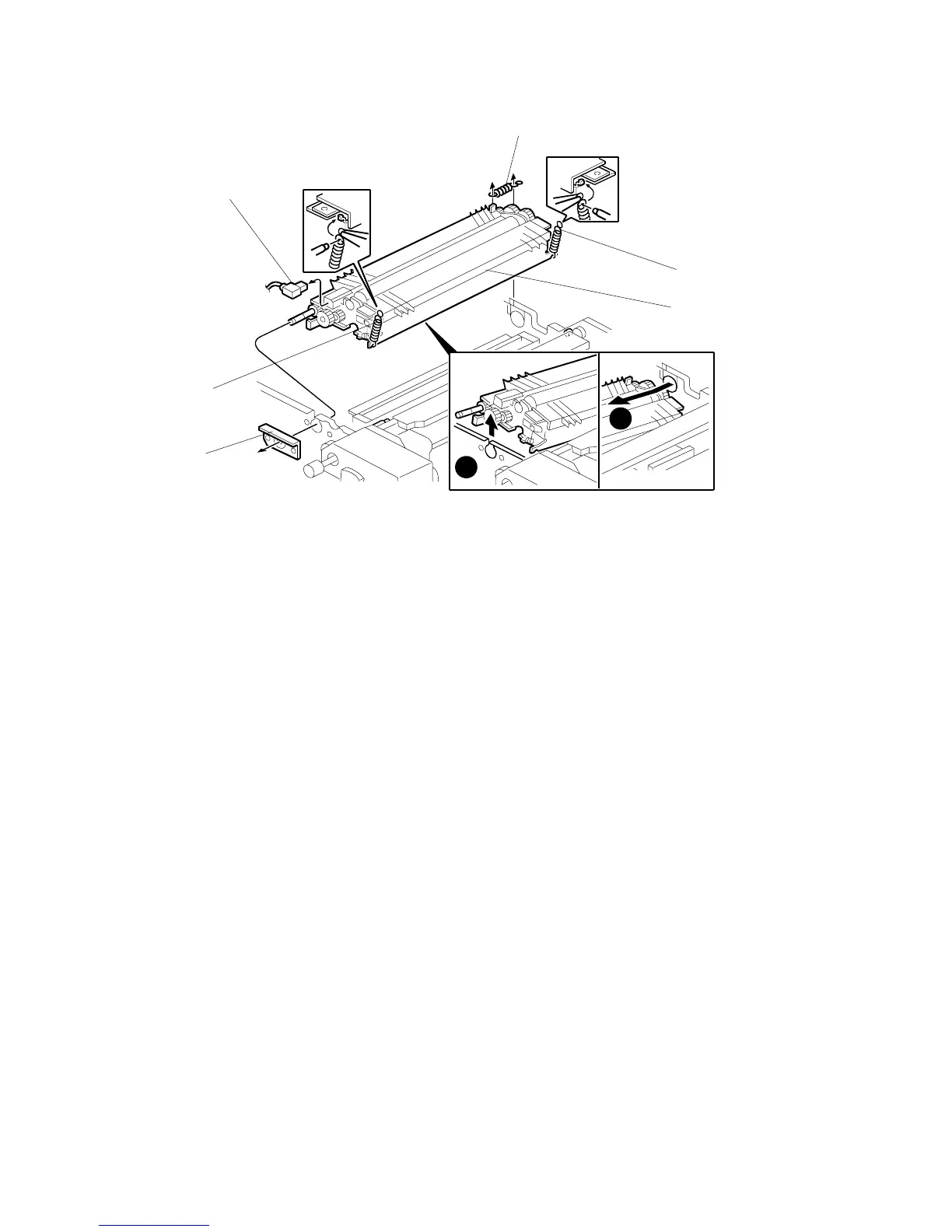

Change the position of:

[A]: Spring

[B]: Spring

Remove:

[C]: Spring

[D]: Connector ( x1) (use a pair of small pliers to remove the connector)

[E]: Bracket ( x2)

[F]: Paper transfer unit (PTR unit)

• The handle should be up.

• Raise the front .

• Pull the rear 

Reinstallation

• Be sure to set springs [A], [B], and [C] in their original positions before you re-

install the PTR unit.

• Do the forced MUSIC adjustment with SP 2111 001 ( 3.19.4).

B132R303.WMF

[A]

[B]

[C]

[D]

[E]

[F]
