August 2006 UPPER TRAY PAPER HEIGHT SENSORS 1, 2
B700-7
Peripherals
1.5 UPPER TRAY PAPER HEIGHT SENSORS 1, 2
• Remove small upper cover, upper cover (1.1.1)
[A]: Upper Tray Paper Height Sensor Bracket ( x1)
[B]: Upper Tray Paper Height Sensor 1 – Staple Mode (S08) ( x1)
[C]: Upper Tray Paper Height Sensor 2 – Non-Staple Mode (S09) ( x1)

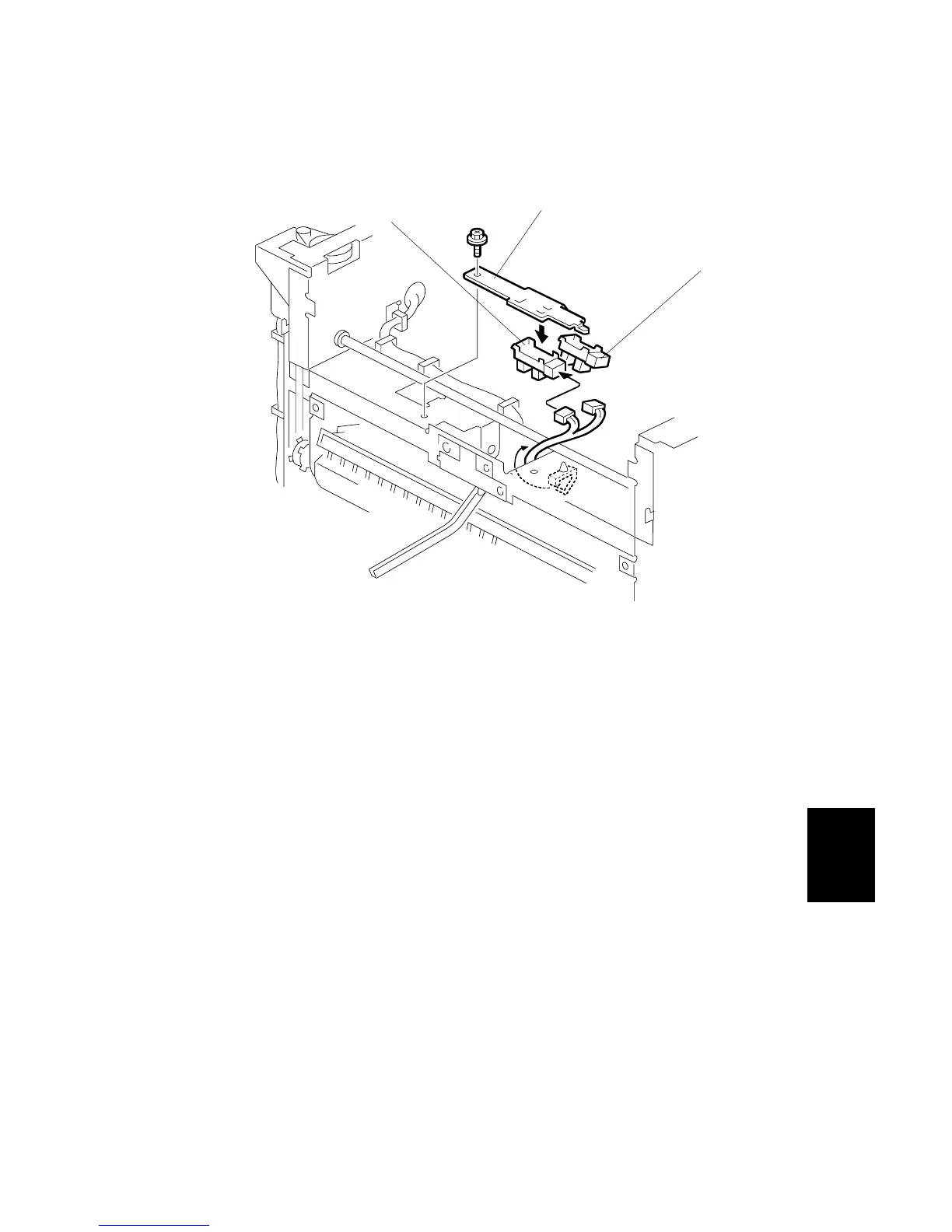

B700R108.WMF
[A]
[B]
[C]
