Toshiba e-STUDIO4500c Service Manual

September 2006 BOTTOM PLATE LIFT WIRE REPLACEMENT
B331-3
Peripherals

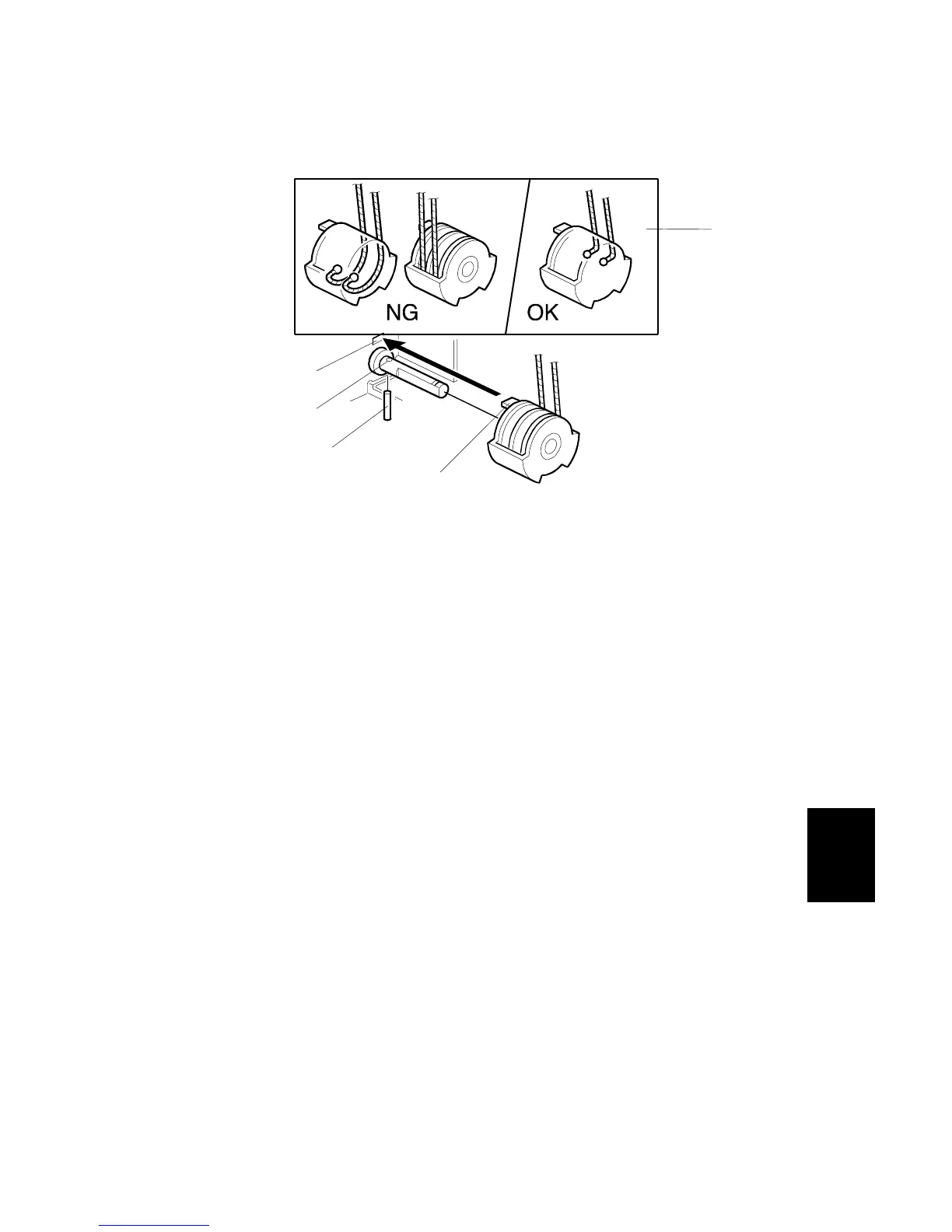

NOTE:
When re-installing the bottom plate lift wire:
1)
Set the positioning pin [A] in the hole [B] and set the projection [C] in the
hole [D].
2) Position the wire as shown [E].
3) Do not cross the wires.
B331R061.WMF
[E]
[D]
[B]
[A]
[C]
06/09
