PCU (PHOTOCONDUCTOR UNITS) August, 2006

3-48

30. Re-install the development unit in the PCU.

31. Reattach the small and large plate at the front and rear.

32. Push the PCU fully into the slot to reinstall it.

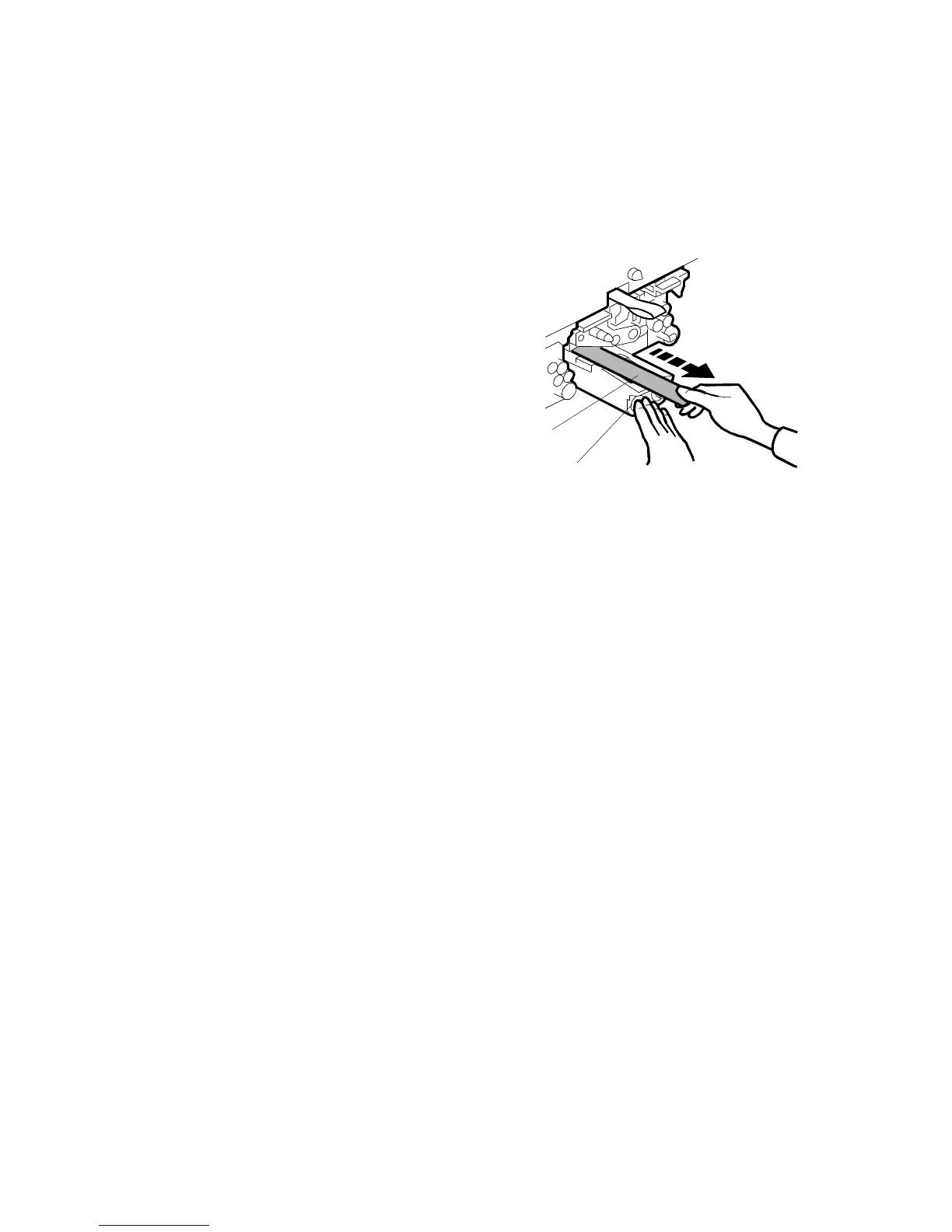

33. To release the developer in the PCU,

pull out the film seal [A].

NOTE: Place your other hand on the

PCU [B] to steady it while you pull on

the film seal.

Reinstallation

Important! YOU MUST DO SOME SPS, OR A FATAL ERROR WILL OCCUR. (3.5.7)

B132I101.WMF

[A]

[B]
