Toshiba e-STUDIO4500c Service Manual

August 2006 COVER INTERPOSER TRAY (B704)
1-107
Installation

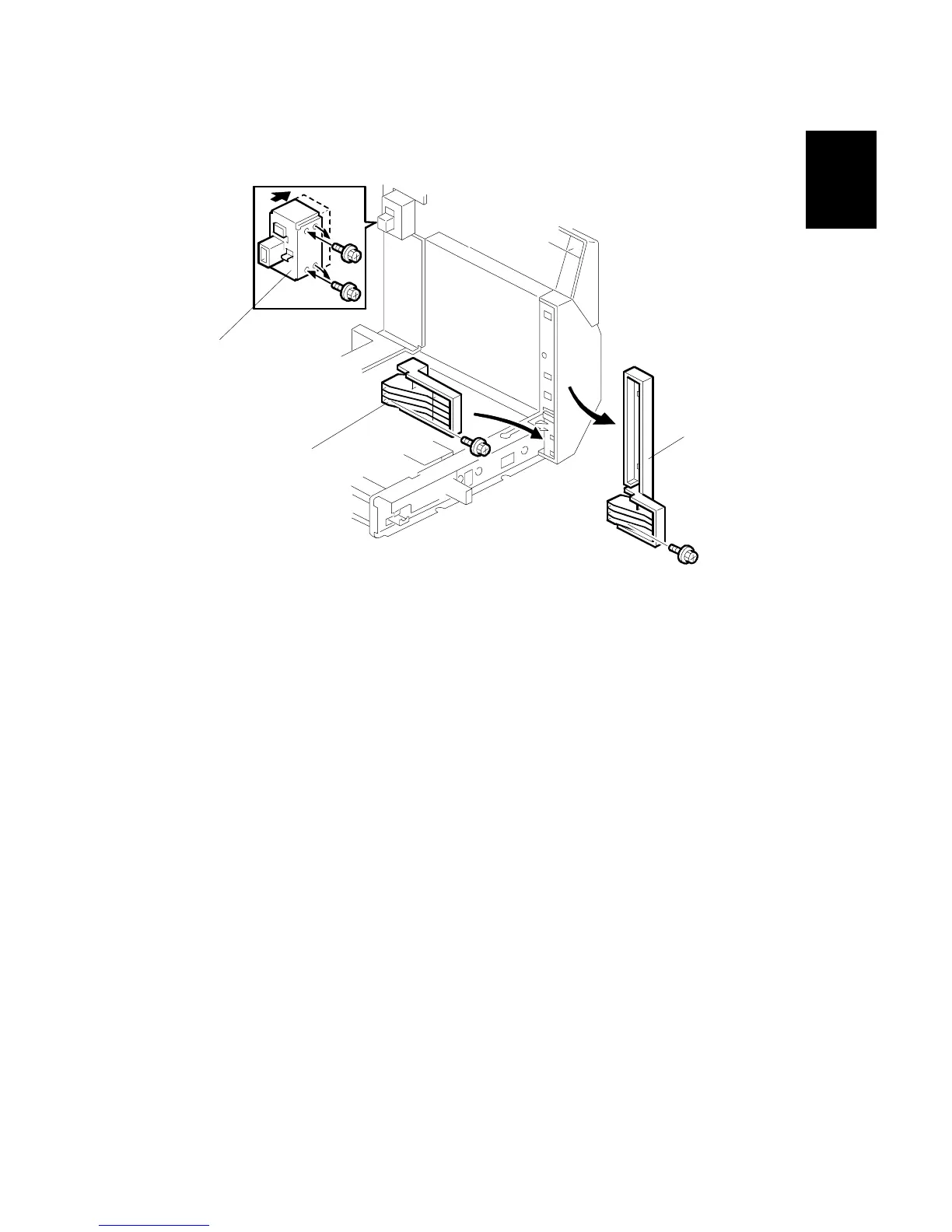

Prepare the Cover Interposer for the B706
1. Remove spacer [A] ( x1).
2. Attach spacer [B] ( x1).
3. Remove the screws from the connector case [C] ( x2).
4. Push the connector case in the direction of the arrow until the second set of
holes are aligned with the holes below, then attach the screws.
B706I900.WMF
[A]
[B]
[C]
