Toshiba e-STUDIO4500c Service Manual

TANDEM TRAY (TRAY 1) August, 2006
3-118
NOTE:

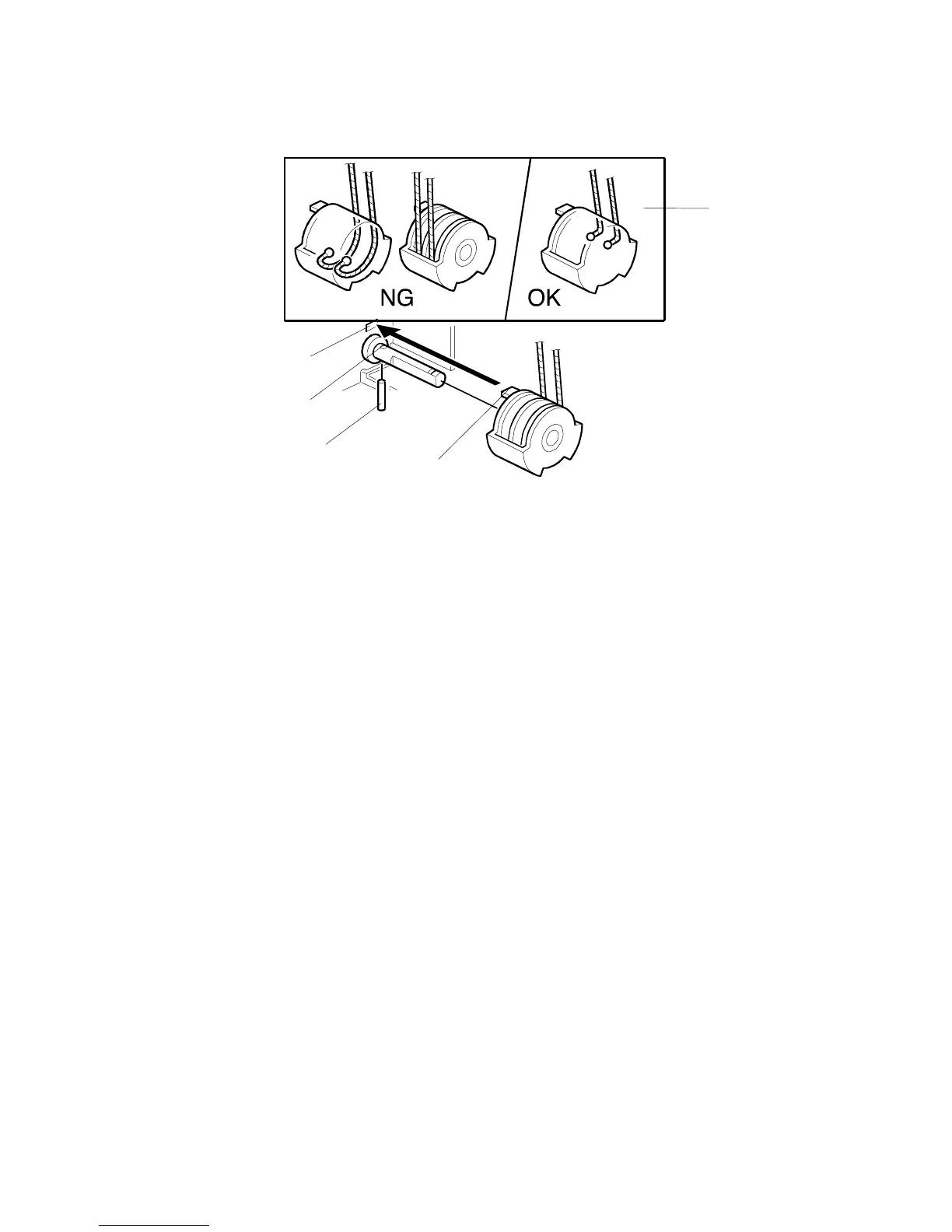

When re-installing the bottom plate lift wire:
1) Set the positioning pin [A] in the hole [B], and set the projection [C] in
the hole [D].
2) Position the wire as shown [E].
3) Do not cross the wires.
B140R830.WMF
[E]
[D]
[B]
[A]
[C]
