Toshiba e-STUDIO4500c Service Manual

TANDEM TRAY (TRAY 1) August, 2006
3-120
Left Tray

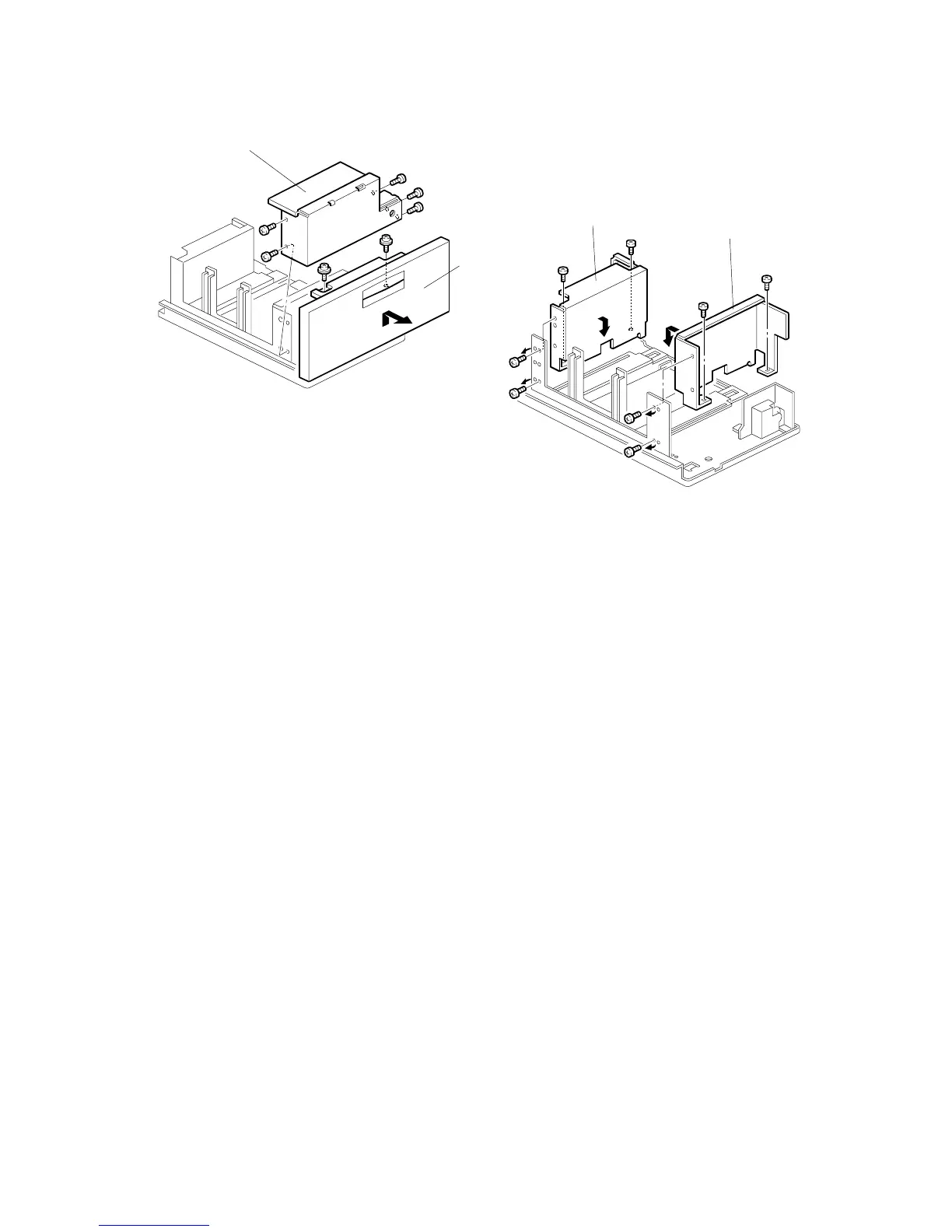

6. Remove the tray cover [A] ( x 2).
7. Remove the DC motor cover [B] ( x 5).
8. Remove the rear side fence [C] and front side fence [D] ( x 4 ea.)
9. Re-position the side fences ( x 4 ea.).
A4: Outer slot position
LT: Inner slot position
10. Re-install the DC motor cover and the tray cover.
B132R624.WMF
B140R834.WMF
[A]
[B]
[C]
[D]
