NOTE: When you replace the BICU, make sure that the DIP switches are set to
the correct positions.
• 120V machines: Make sure only DIP switch #1 is ON.
• 220/230/240V machines: Make sure only DIP switch #2 is ON.

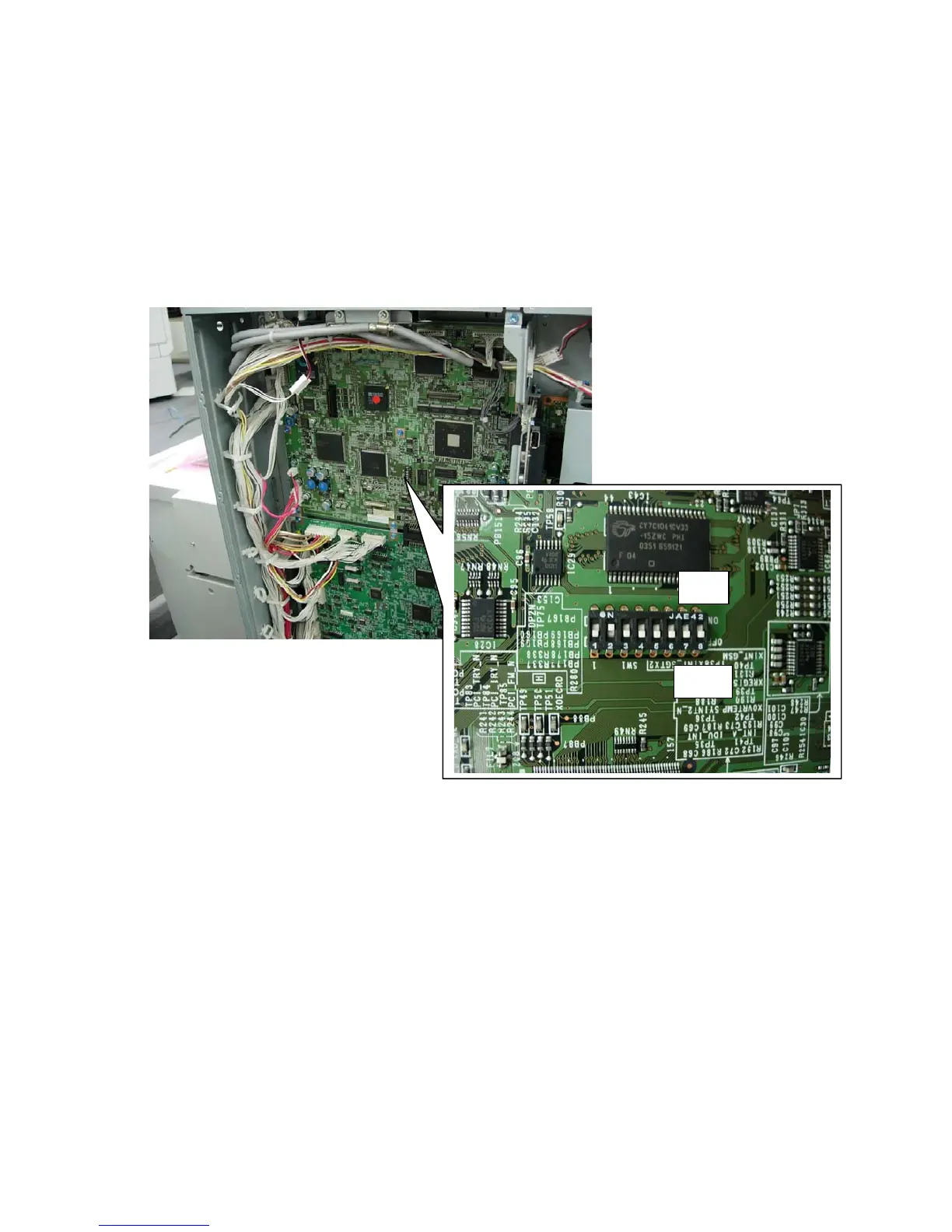

Example: A 220/230/240V machine (only DIP SW #2 is ON, the others are OFF).
ON
OFF
