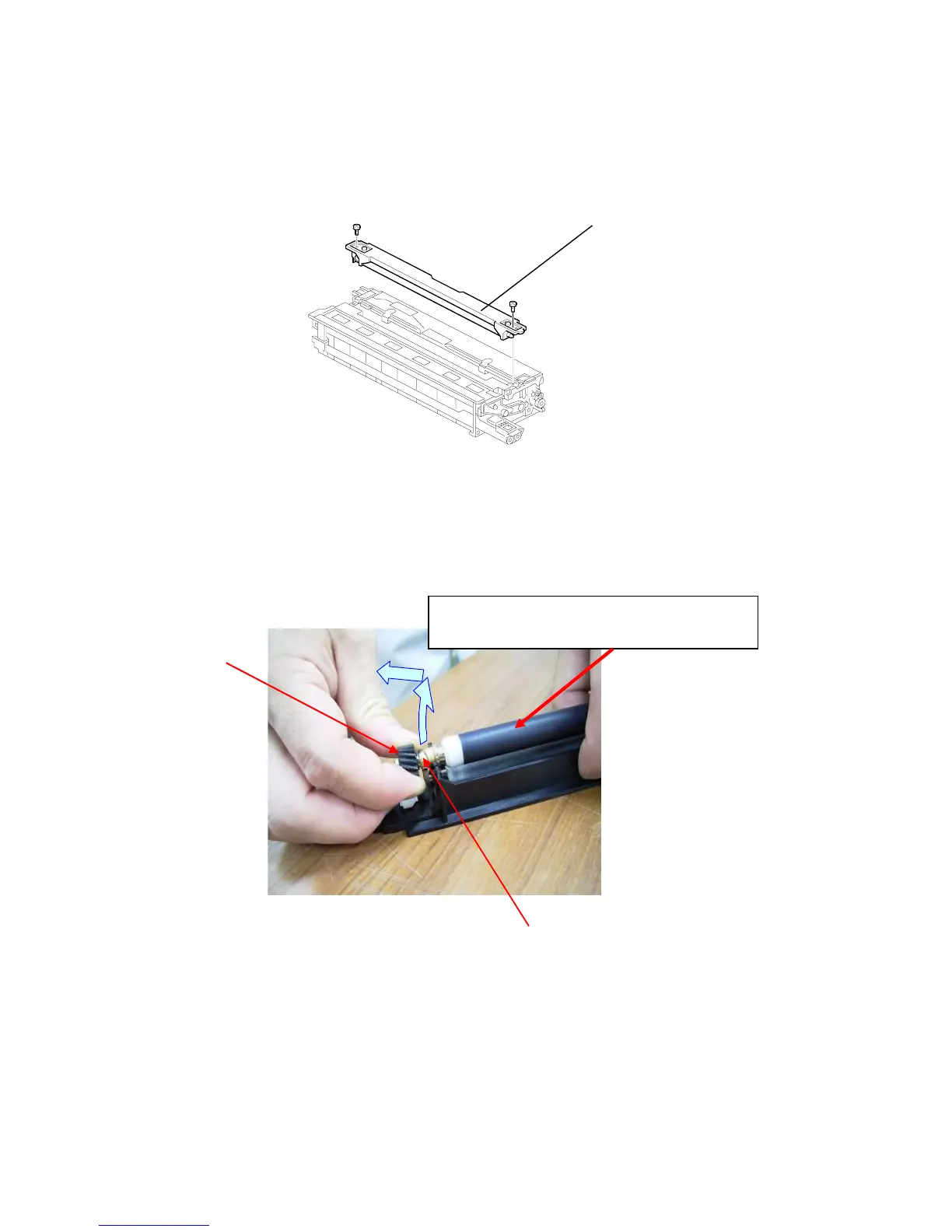

2. Remove the charge roller unit [A] (2 screws). This unit contains the charge
roller and the charge roller cleaning roller.
3. Remove the drum charge roller with gear and bushing.
4. Remove the drum charge roller gear [B] and the bushing [C] at the same time
(See below figure).
NOTE: Do not remove the bushing on the non-gear side.
[A]
Do not touch the black part of the drum
charge roller.
[B]
[C]
