COPIER E-STUDIO4500C/5500C August, 2006
1-10

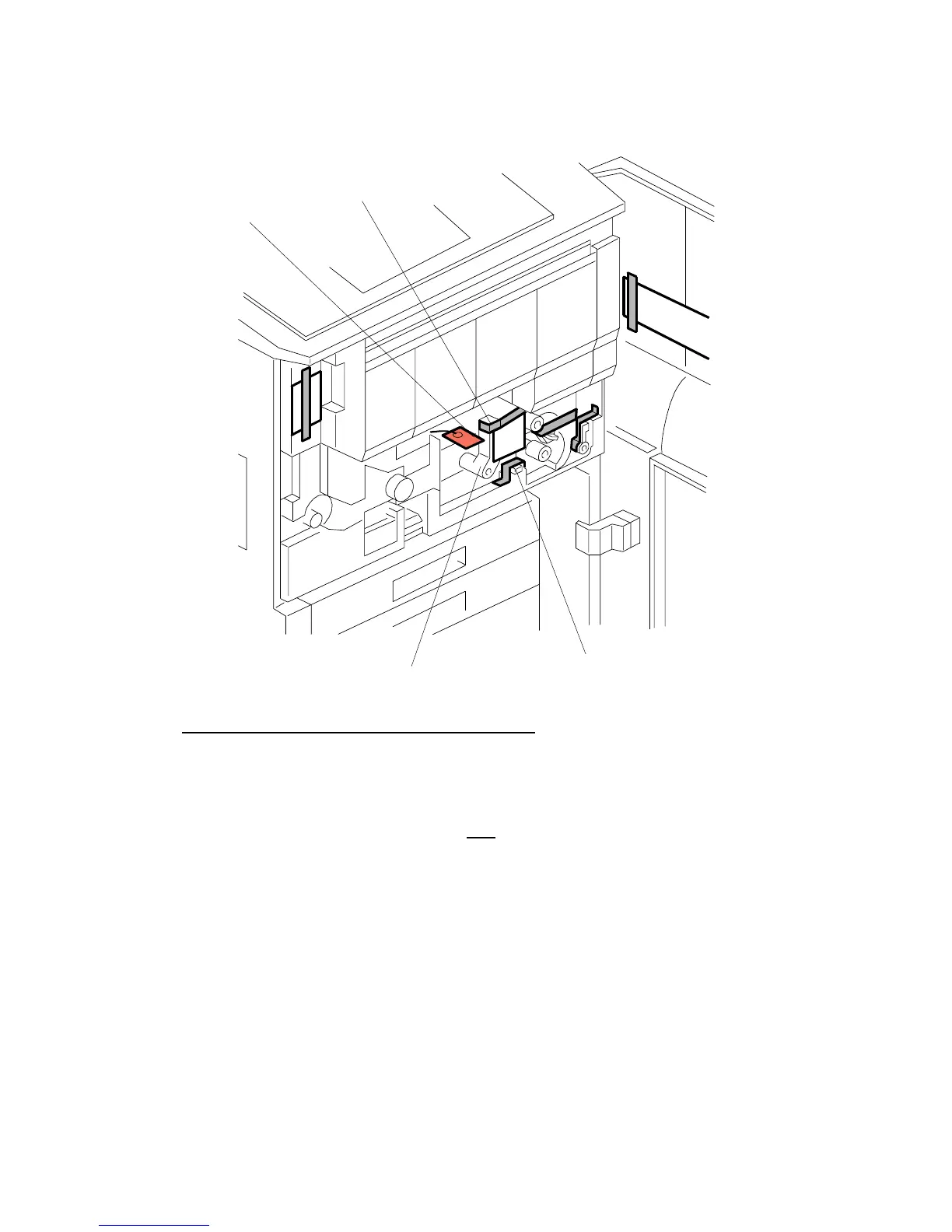

1. Open the front door and, and remove the transfer belt release lever [A] (1 tape).
We will install this in the correct location later.
Important
• DO NOT TOUCH [B], [C], OR [D] AT THIS TIME. THESE ITEMS ARE REMOVED AFTER YOU
REMOVE THE FACE PLATE.
• T
O PREVENT DAMAGE TO THE ITB, NEVER TURN DOWN LEVER [D] TO PULL OUT THE DRAWER
UNIT UNTIL AFTER YOU HAVE REMOVED THE ROD
WITH THE RED TAG AND WIRE [B]. THE
DRAWER MUST REMAIN INSIDE THE MACHINE UNTIL AFTER THE DEVELOPER IS INSTALLED IN
THE DEVELOPER CARTRIDGES OF THE
PCUS.
• T
HE ROD IS REMOVED AFTER THE FACE PLATE IS REMOVED TO INSTALL THE DEVELOPER
CARTRIDGES
. (PG.1-12)
