Toshiba e-STUDIO4500c Service Manual

April, 2007 ADDITIONAL INFORMATIONS
4-113
5. Measure the nip width on the OHP sheet and make sure it is within
specification.
NOTE: Note: See Nip Width Specifications below.

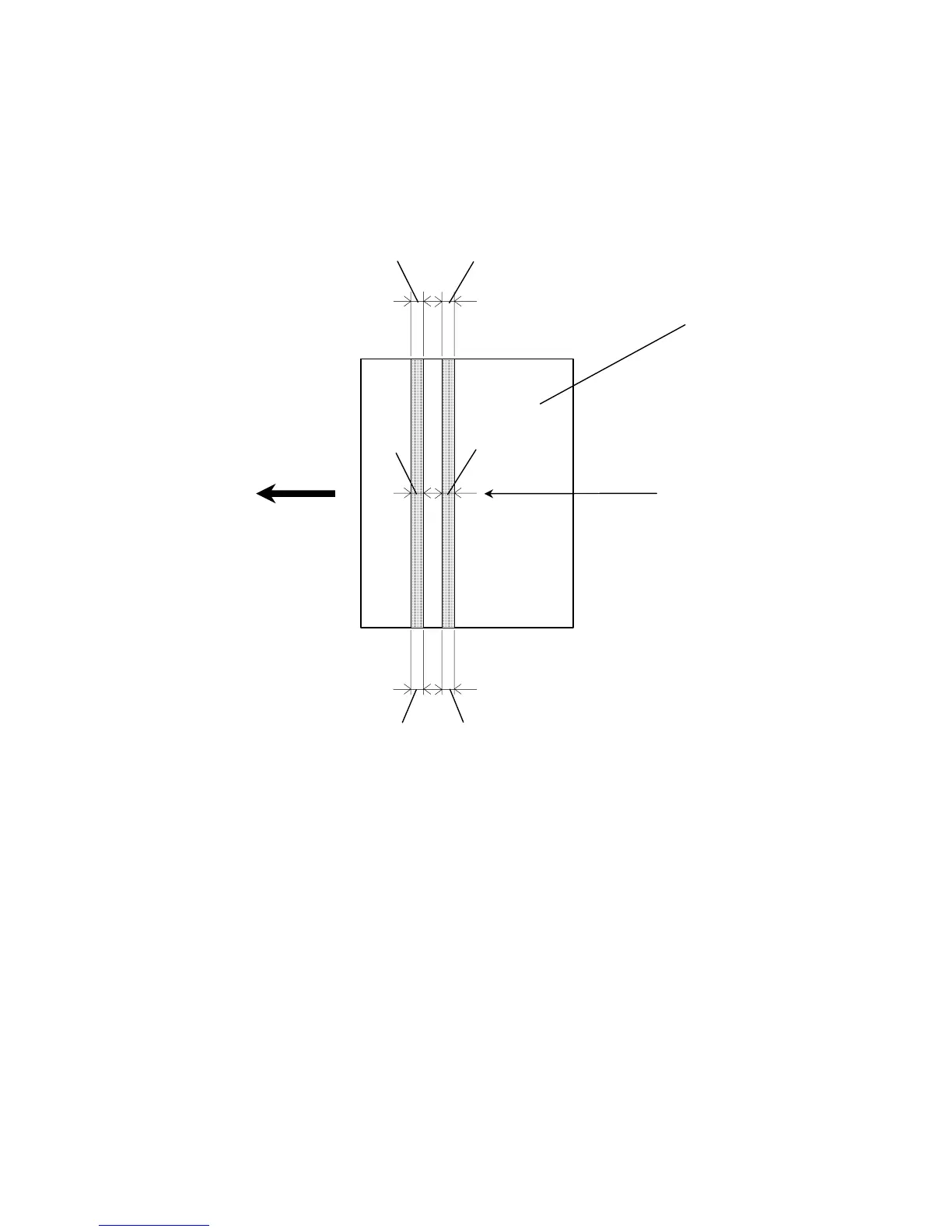

NIP WIDTH SPECIFICATIONS:
All of the following must be true.
1. ([E] + [F]) / 2 = 11.1 +/- 0.3mm
and
2. The difference between [A] and [C] is 0.5mm or smaller
and
3. The difference between [B] and [D] is 0.5mm or smaller
Feed
Direction
[A]
[B]
[C]
[D]
[E]
[F]
OHP sheet
Center of OHP sheet
