Toshiba e-STUDIO4500c Service Manual

ARDF August, 2006
6-14
6.4.2 ARDF ELECTRICAL COMPONENTS

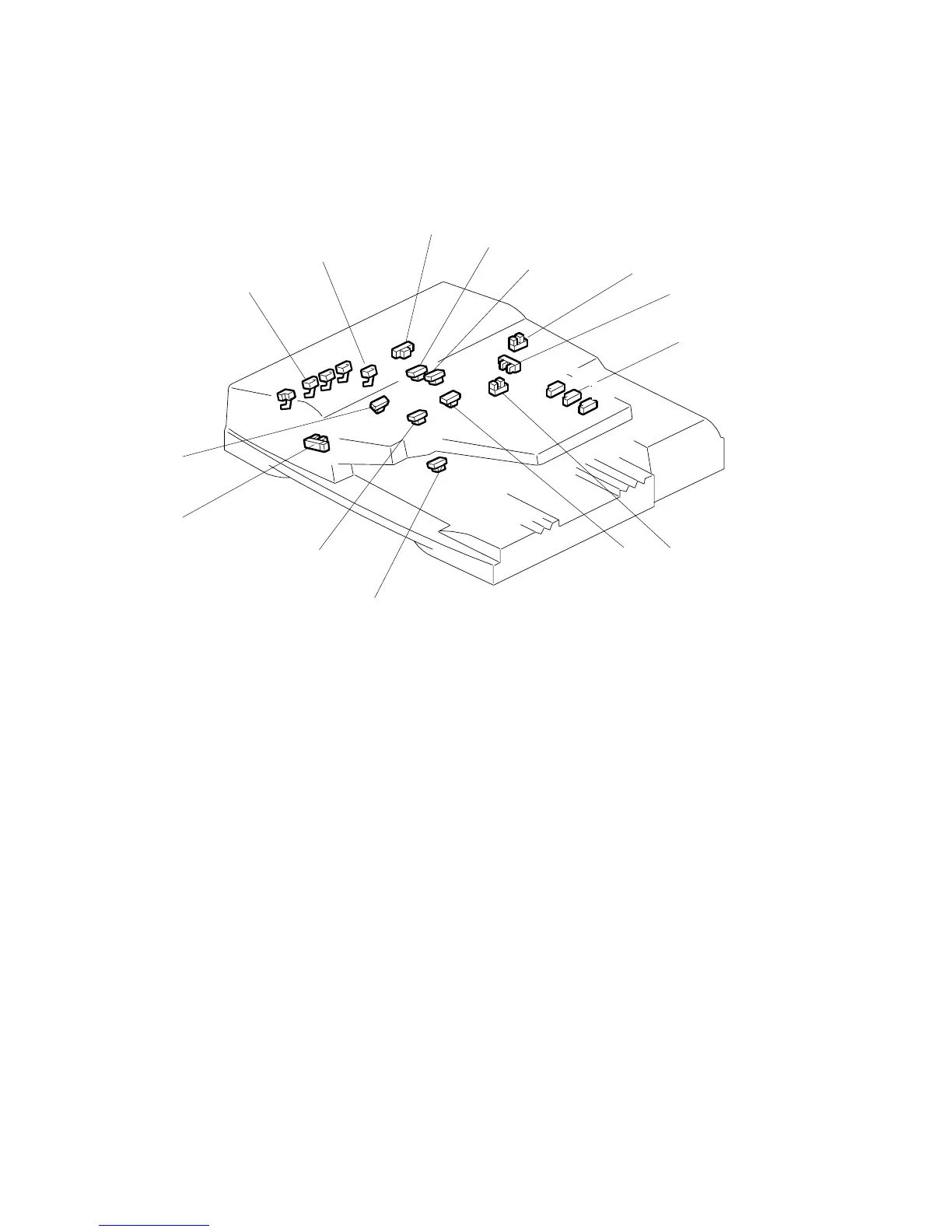

Components View 1: Sensors
1. Original Width Sensors ( to )
2. Original Width Sensor 1 (for B6 SEF)
3. Interval Sensor
4. Skew Correction Sensor
5. Separation Sensor
6. Feed Cover Open Sensor
7. Bottom Plate Position Sensor
8. Original Length Sensors (x3)
9. Original Set Sensor
10. Upper Inverter Sensor
11. Lower Inverter Sensor
12. Exit Sensor
13. Bottom Plate HP Sensor
14. Registration Sensor
B132D106.WMF
1
2
5
6
7
8
11
12
13
14



LG
A4
B5


10
9
3
4
