Toshiba e-STUDIO4500c Service Manual

August, 2006 COPY TRAY (B756)
1-41
Installation

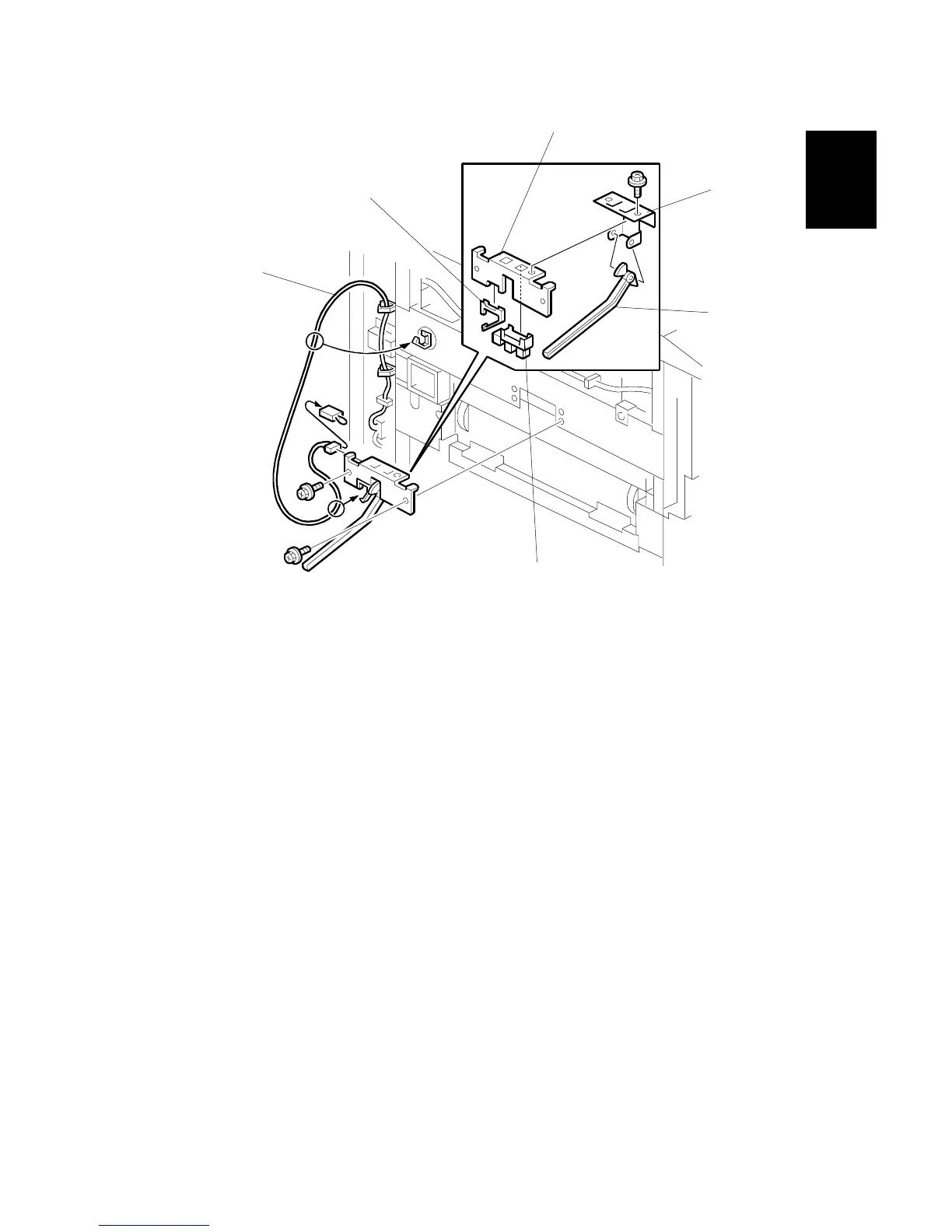

2. Attach the paper height sensor [A] and harness clamp [B] to the sensor bracket
[C].
3. Attach the sensor bracket and actuator arm bracket [D] to the copier ( x3).
4. Attach the sensor harness [E] ( x1,  x4).
5. Attach the actuator arm [F] to the arms of the actuator arm bracket.
B756I003.WMF
[A]
[B]
[C]
[D]
[E]
[F]
