TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
259
Hard disk drive (HDD) / solid state drive (SSD)

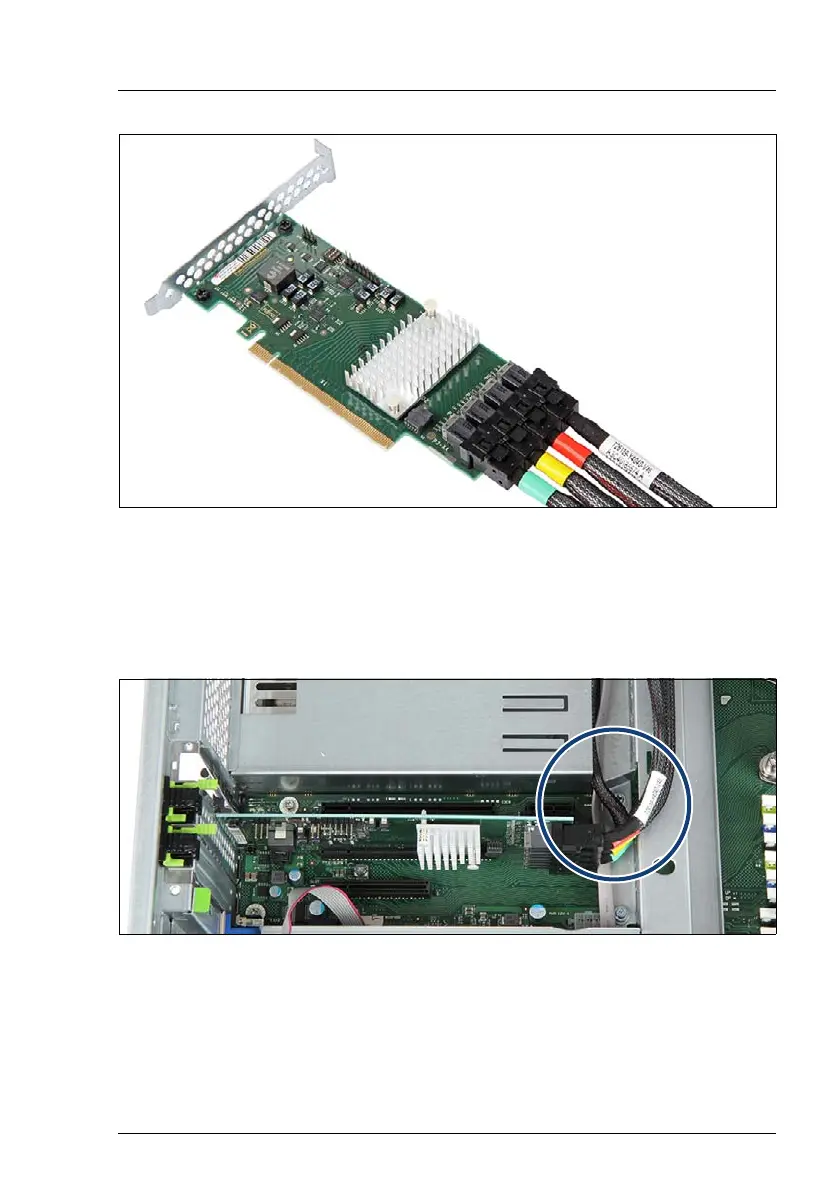

Figure 170: Connecting PCIe cables to PCIe switch
Ê
Connect cable C27 to the first PCIe switch. Notice the positions of the color-
coded PCIe cables.
I
Cable C27 consists of four color-coded PCIe cables.
Figure 171: Connecting PCIe cables to PCIe switch
Ê
Install the first PCIe switch in PCIe slot 8 as described in section "Installing
expansion cards in standard slots" on page 295. Route the green-coded
PCIe cable as shown in the figure (see circle).
