260
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Hard disk drive (HDD) / solid state drive (SSD)

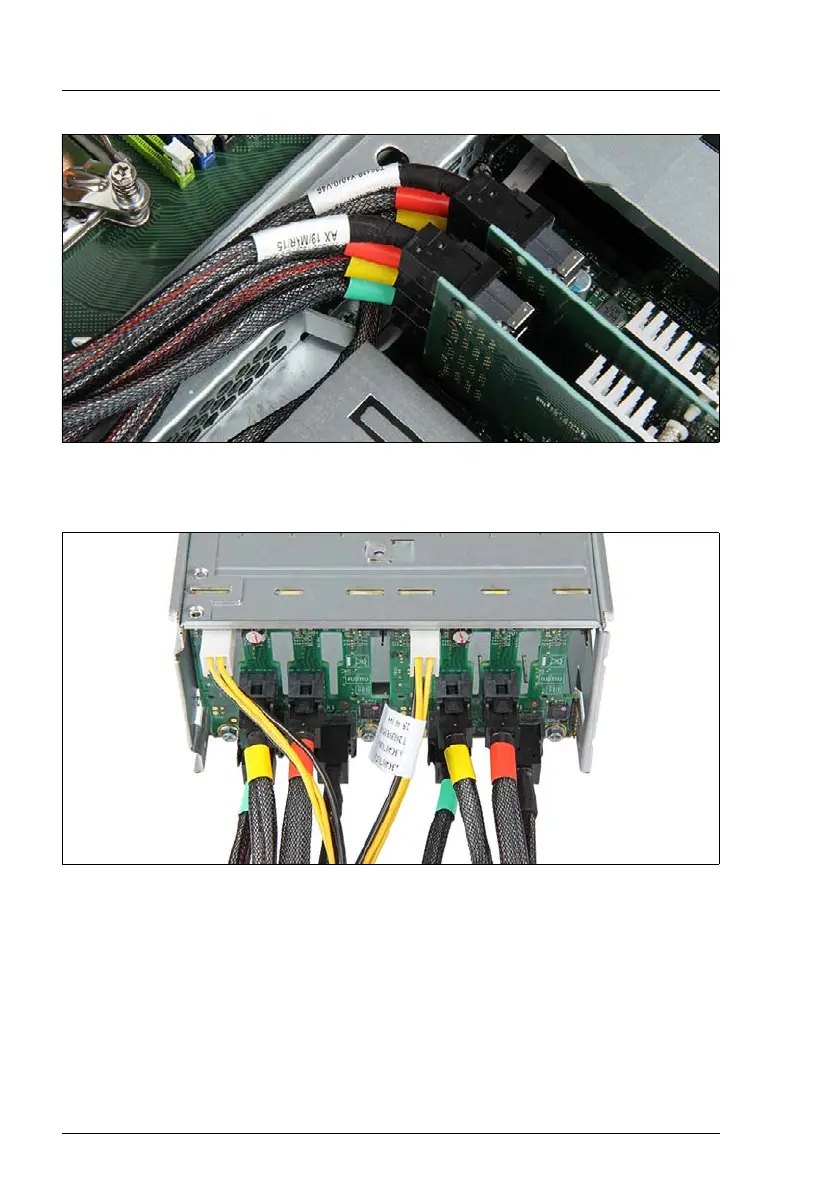

Figure 172: Installing second PCIe switch
Ê
Install the second PCIe switch in PCIe slot 9 in the same way.
Figure 173: Connecting PCIe cables to the PCIe SSD backplanes
Ê
Connect the PCIe cables to the PCIe SSD backplanes. Notice the colors
(see cabling plan "PCIe cabling: 8x 3.5" HDDs, 4x/8x 2.5" PCIe SSD" on
page 526 or "PCIe cabling: 16x 2.5" HDDs, 4x/8x 2.5" PCIe SSD and SAS
3.0 expander board A3C40181407" on page 527).
