Converting a tower model to a rack model

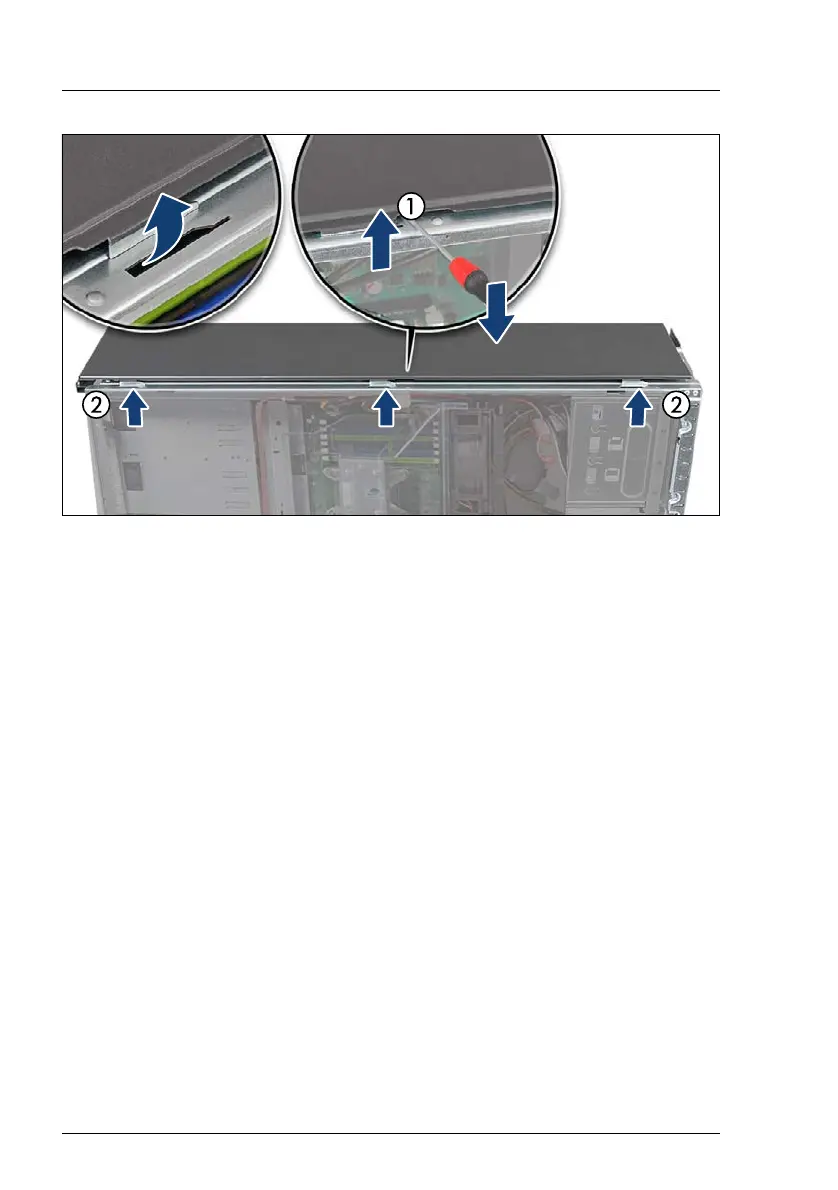

Figure 366: Removing the right side cover (B)
Ê
Slide the right side cover towards the server rear as far as it will go.
Ê
Ensure that the three hooks on the right side cover rest in the wide ends of
the slots on the upper chassis edge (see close-up).
Ê
Remove the three hooks on the right side cover from the slots on the upper
chassis edge:
Ê
Using a slotted screw driver, slightly pry up on the middle hook until it
disengages (1).
Ê
Pull up both ends of the right side cover to remove the left and right hooks
from the slots on the upper chassis edge (2).
Ê
Ensure that all cables and components are properly secured inside the
server and that there are no loose pieces.
Ê
Carefully turn the server upside down.
I
At least two people are needed to turn over a fully equipped server.
Remove HDDs and PSUs in order to facilitate the task.
