TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual
497
Converting a tower model to a rack model
Ê
Lift off and remove the right side cover.
I
The right side cover is no longer required.
Ê
Leave the server in its upside down position.
Removing glider feet

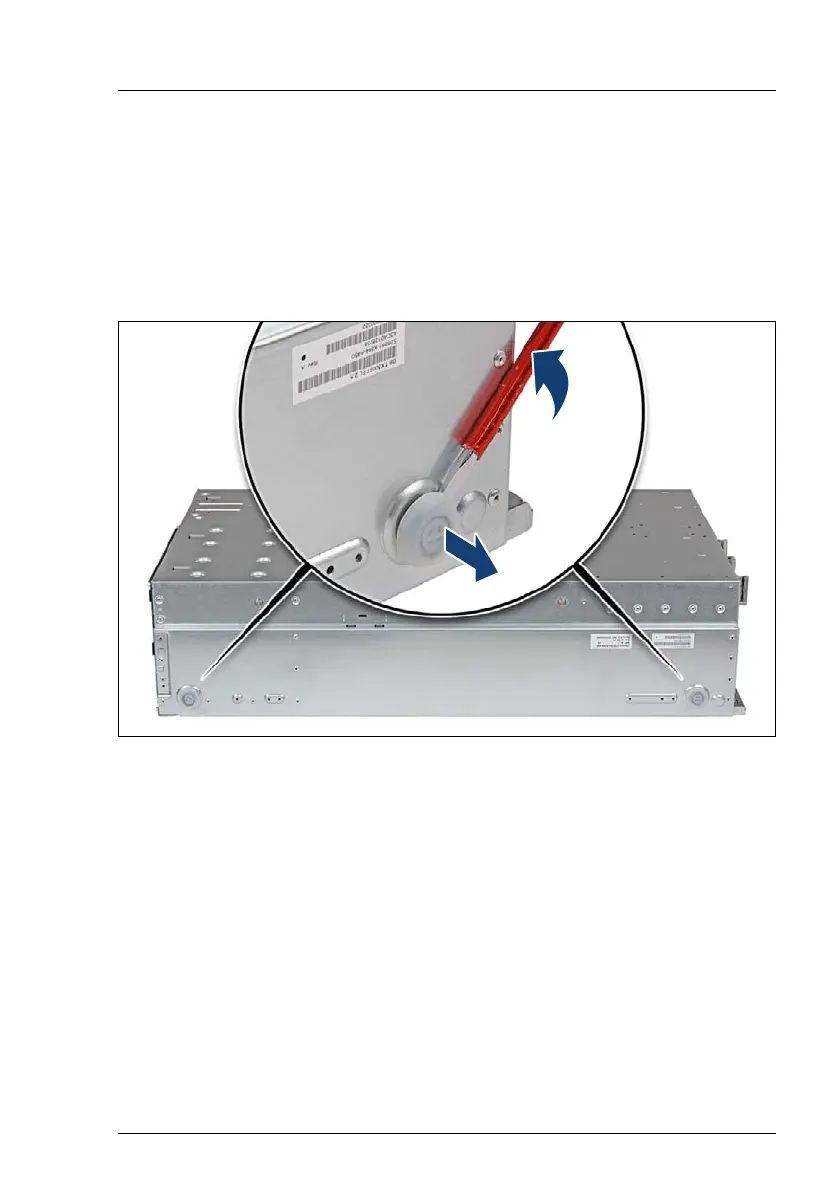

Figure 367: Removing glider feet
Ê
Using a slotted screw driver, slightly pry up on each glider foot until it
detaches.
Ê
Bring the server back to its horizontal position.
I
At least two people are needed to turn over a fully equipped server.
Remove HDDs and PSUs in order to facilitate the task.
