500
Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Converting a tower model to a rack model

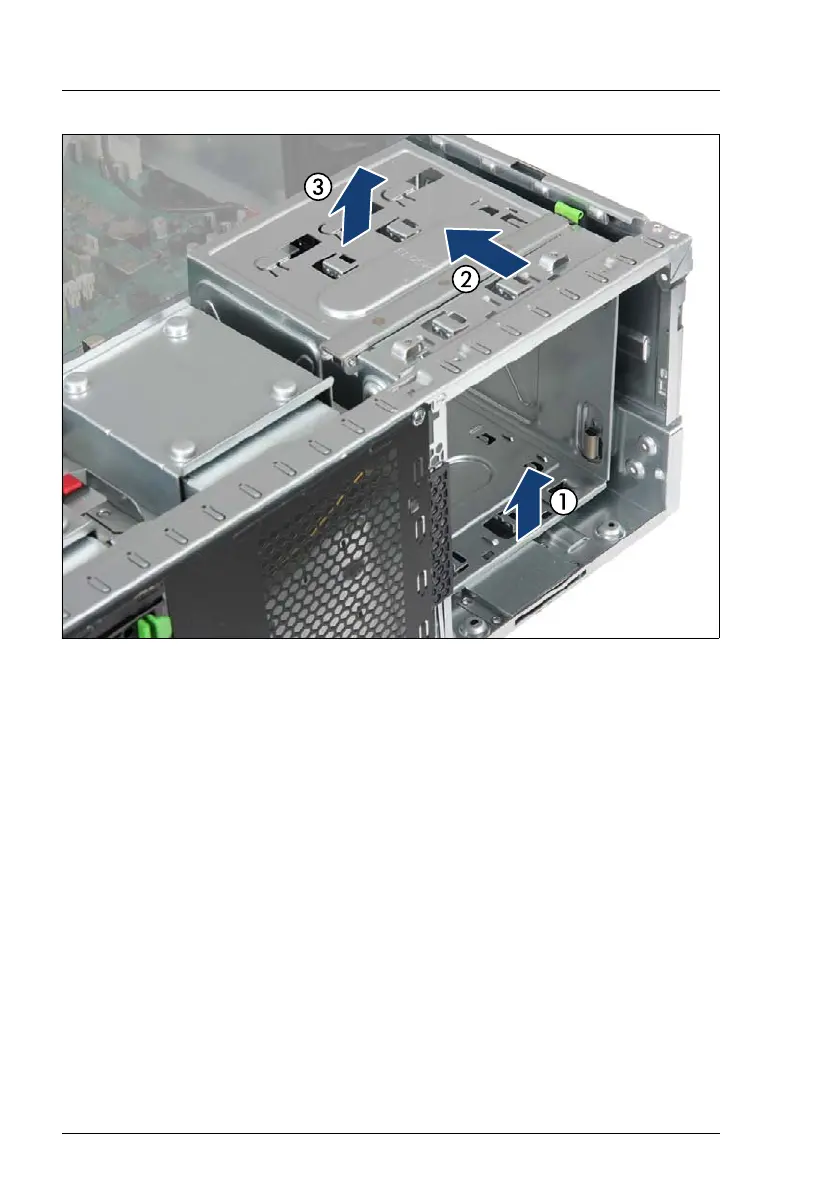

Figure 370: Removing the accessible drive cage
Ê
Slightly lift up the accessible drive cage to disengage its front bottom edge
from the slot on the chassis floor (1).
Ê
Slide the accessible drive cover from under the chassis frame as shown (2).
Ê
Lift the accessible drive cage out of the chassis (3).
