518 Upgrade and Maintenance Manual TX2560 M2 / RX2560 M2
Cabling

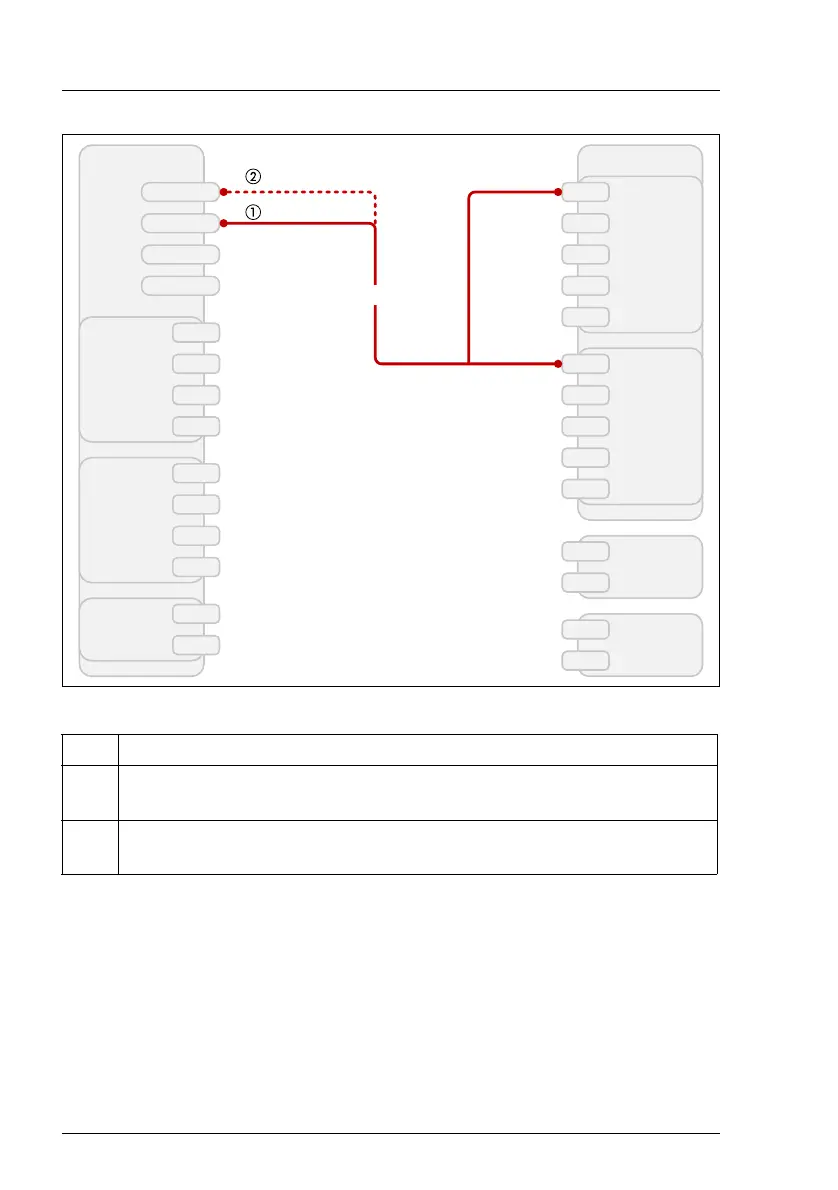

Figure 384: Power cabling: 8x 2.5" PCIe SSD SSF
Pos. Connection (dotted line shows alternative connection)
1
Connected to PWR 12V3 in configurations with up to 8x/16x HDD/SSD
modules and up to eight PCIe SSDs
2
Connected to PWR 12V4 in configurations with up to 24x HDD/SSD
modules and up to eight PCIe SSDs
System Board HDD Extension Box
PWR 12V 4
PCIe Switch 2
Slot 8
P0_X1
P1_X2
P2_X3
P3_X4
PCIe Switch 1
Slot 9
P0_X1
P1_X2
P2_X3
P3_X4
SAS 3.0 Ctrl
Slot 1 (boot)
MLC2
MLC1
PWR 12V 3
PWR 12V 2
PWR 12V 1
4x 2.5" PCIe
Backplane 1
P3_X4
P2_X3
P1_X2
P0_X1
X12
4x 2.5" PCIe
Backplane 2
P3_X4
P2_X3
P1_X2
P0_X1
X12
C5
8x 2.5" HDD
Backplane 2
X17
X40
8x 2.5" HDD
Backplane 1
X17
X40
