Fujitsu PRIMERGY TX2560 M2

TX2560 M2 / RX2560 M2 Upgrade and Maintenance Manual 519
Cabling

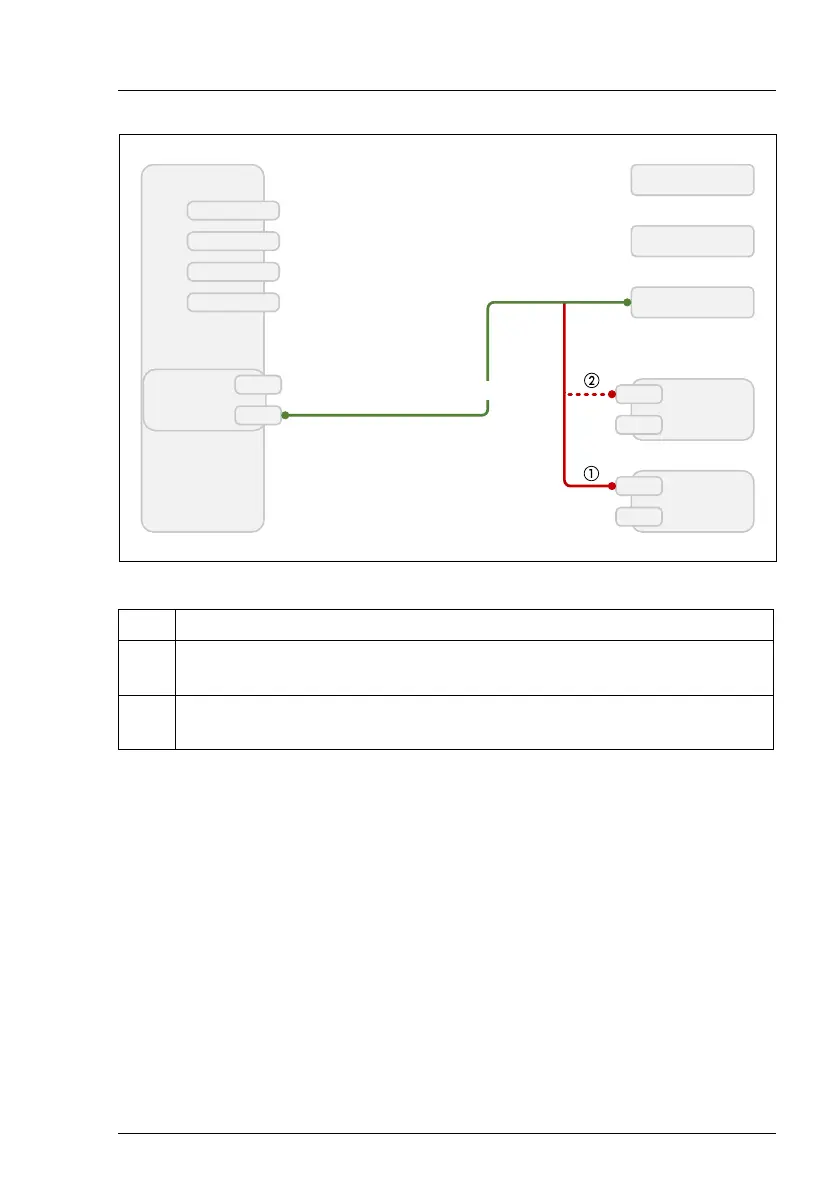

Figure 385: Power cabling: LTO
Pos. Connection (dotted line shows alternative connection)
1
Connected to HDD backplane 1 in configurations without expander
board
2
Connected to HDD backplane 2 in configurations with expander board
(dotted line shows alternative connection for the same plug as before)
LTO Drive
System Board
FRONTPANEL
USB 3.0 Front
Front VGA
SATA 5
3.5" HDD
Backplane 2
X17
X40
3.5" HDD
Backplane 1
X17
X40
Backup Drive
OpƟcal Disk Drive
SAS 3.0
Slot 2/3
MLC2
MLC1
C21
