Cabling

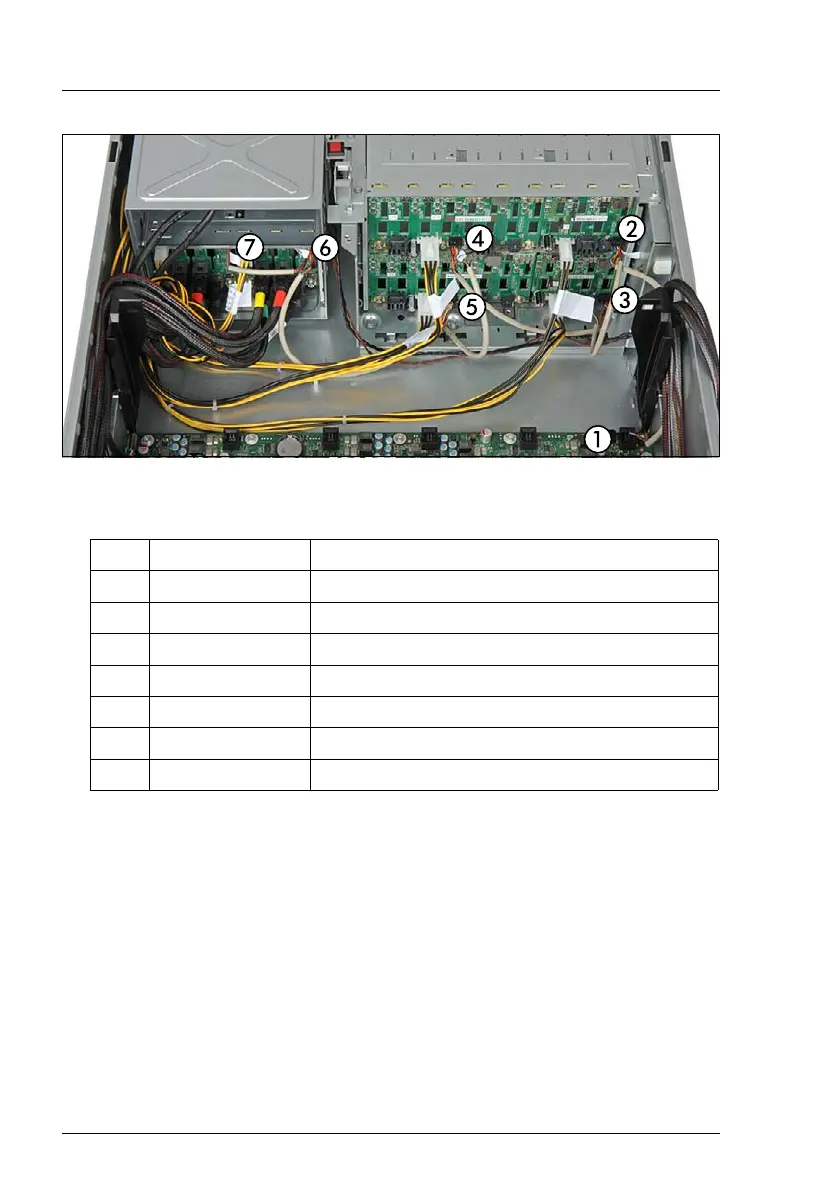

Figure 417: Connecting the OOB cable - example cable C37 for six HDD backplanes
Ê Connect the OOB cable depending on your configuration:
I For other configurations see cabling plans:
– "Options: OOB for three HDD backplanes and PSAS HBA" on
page 530
– "Options: OOB for six HDD backplanes and PSAS HBA" on
page 530
– "Options: OOB for two PCIe SSD backplanes" on page 531
Pos. Plug OOB cable Connector
1 SB I2C on system board
2 BP1 X11 on backplane 1
3 BP2 X11 on backplane 2
4 BP3 X11 on backplane 3
5 BP4 X11 on backplane 4
6 BP5 X11 on backplane 5
7 BP6 X11 on backplane 6
