LAN indicators

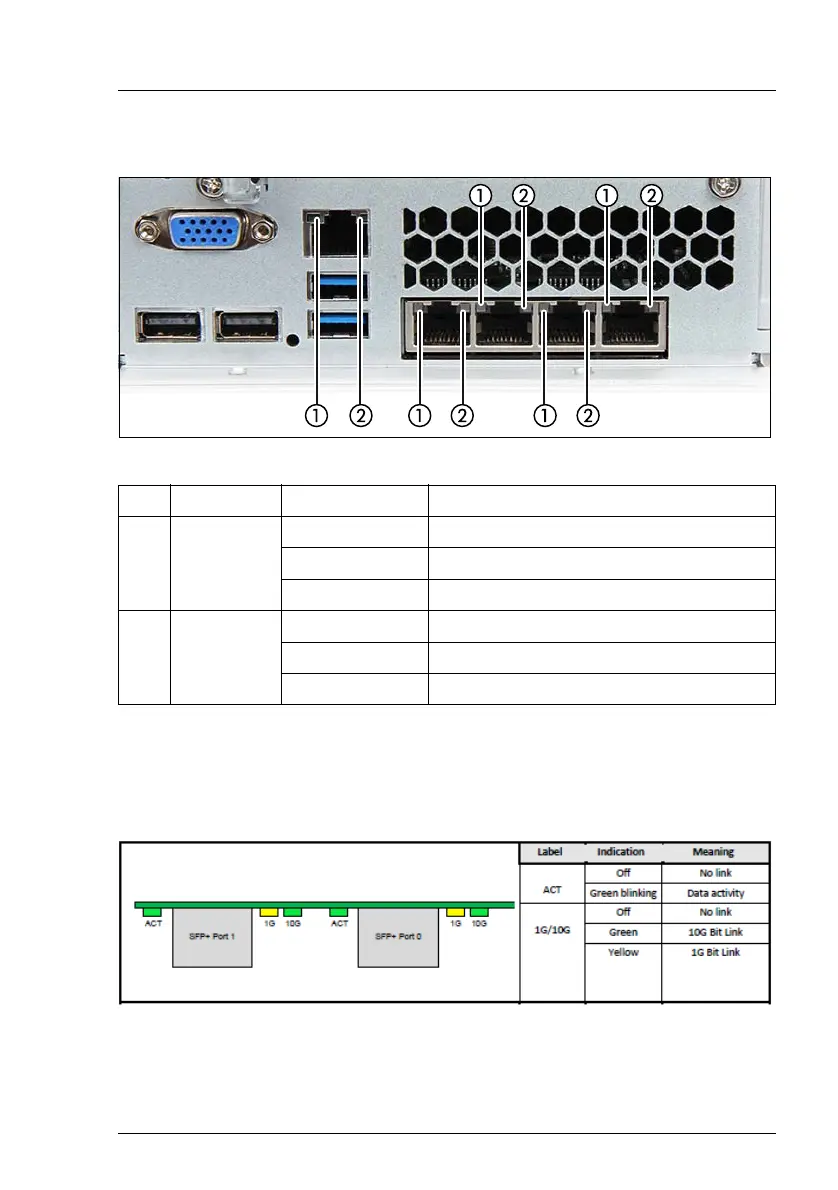

Figure 429: LAN indicators (example D3255)
Note for DynamicLoM module D3265:
This module has two separated indicators for the LAN speed.
Figure 430: LAN indicators D3265
Pos. Indicator Status Description
1
LAN link /
transfer
indicator
green on LAN connection established
off no LAN connection
green flashing data transfer in progress
2
LAN speed
indicator
yellow on traffic a transfer rate of 1 Gbit/s
green on traffic a transfer rate of 100 Mbit/s
off traffic a transfer rate of 10 Mbit/s
