RM0016 16-bit advanced control timer (TIM1)

Doc ID 14587 Rev 8 157/449

17.4.6 Synchronization between TIM1, TIM5 and TIM6 timers

On some products, the timers are linked together internally for timer synchronization or

chaining. When one timer is configured in master mode, it can output a trigger (TRGO) to

reset, start, stop, or clock the counter of any other timer configured in slave mode.

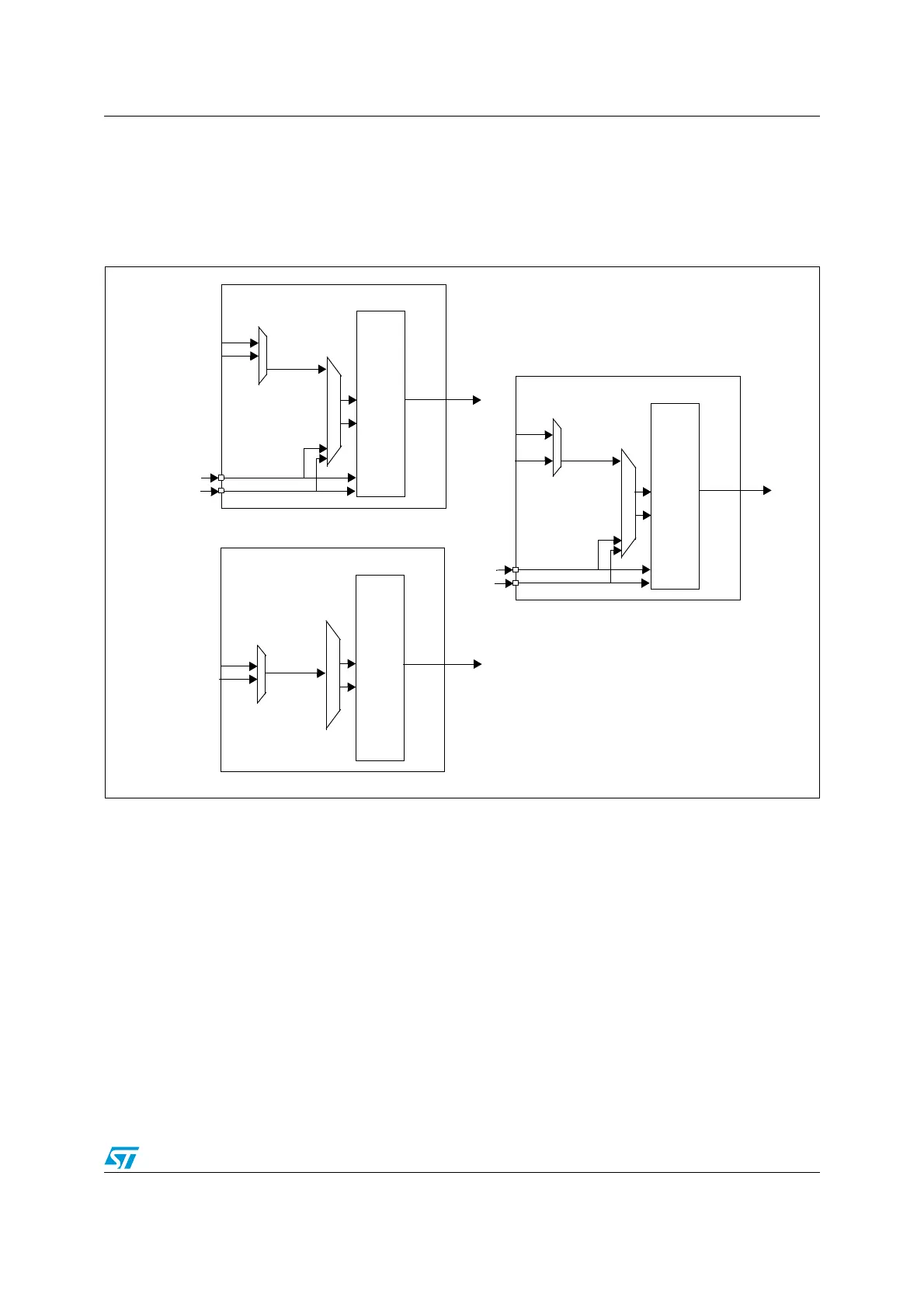

Figure 53. Timer chaining system implementation example

Trigger

Controller

TI1

TI2

ITR0

ITR3

TRGO

TIM5_CH1

TIM5_CH2

TIM 5

Trigger

Controller

TI1

TI2

ITR0

ITR2

TRGO

TIM1_CH1

TIM1_CH2

TIM 1

Trigger

Controller

ITR2

ITR3

TRGO

TIM 6

TRGO from TIM6

TRGO from TIM5

TRGO from TIM1

TRGO from TIM6

TRGO from TIM1
