Flash program memory and data EEPROM RM0016

42/449 Doc ID 14587 Rev 8

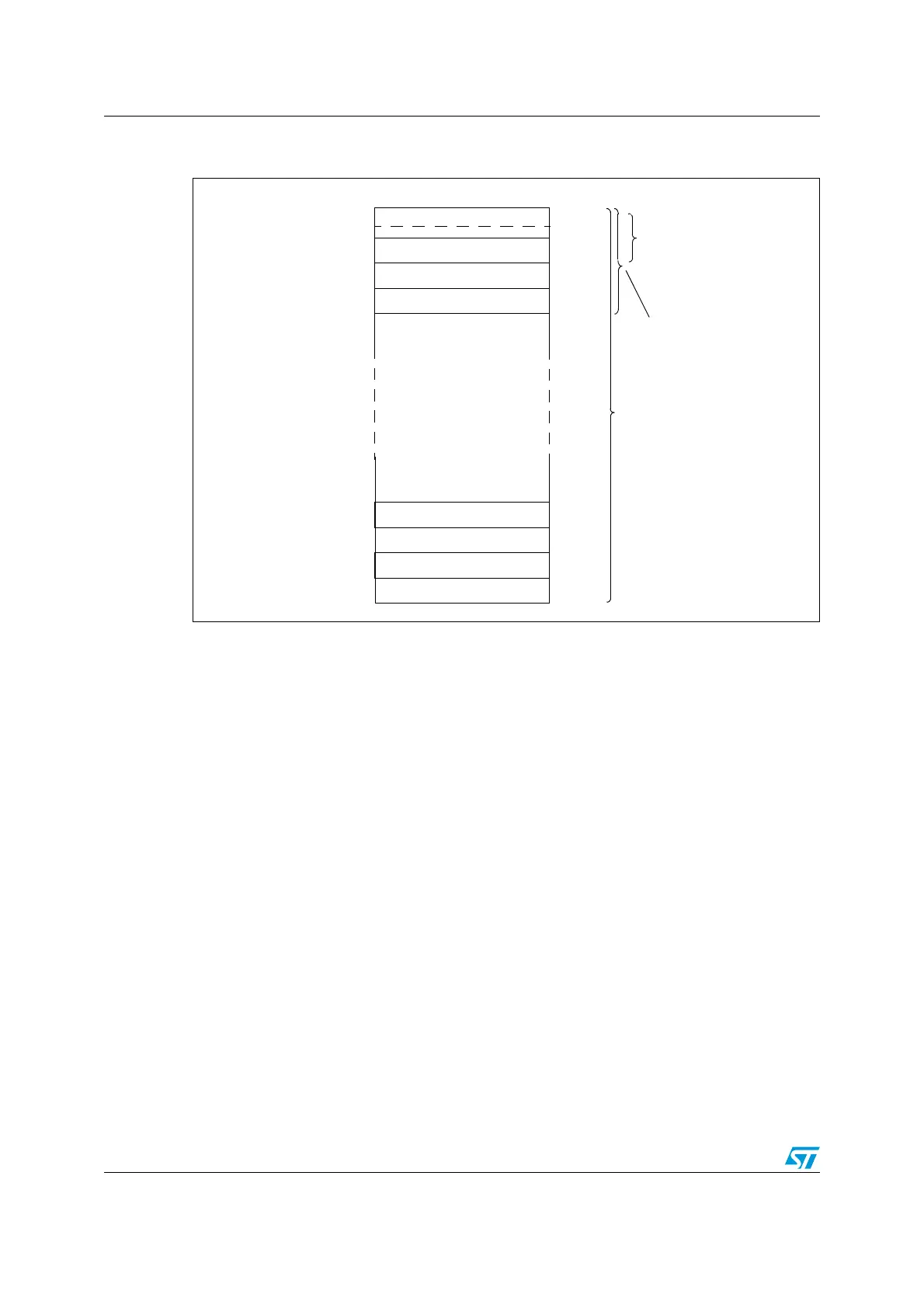

Figure 10. UBC area size definition on medium density STM8S

and STM8A with up to 32 Kbytes of Flash program memory

1. N (number of protected pages) = UBC[7:0] + 2 for UBC[7:0] > 1.

2. UBC[7:0] =0x00 means no user boot code area is defined. Refer to the datasheets for the description of the

UBC option byte.

3. The first 2 pages (1 Kbytes) contain the 128 bytes of interrupt vectors (32 IT vectors).

0x00 FFFF

0x00 FE00

0x00 FC00

0x00 FA00

0x00 F800

0x00 8800

0x00 8600

0x00 8400

0x00 8200

Page 63

Page 62

Page 61

Page 60

Page 3

Page 2

Page 1

Page 0

0x00 8000

UBC[7:0] =0x01

512 bytes

1K to 32 Kbytes

1 Kbytes

UBC[7:0] =0x3E

32 Kbytes

User boot code area

UBC[7:0] =0x02

2 Kbytes

0x00 807F

Interrupt vector table
