Inter-integrated circuit (I

C) interface RM0016

292/449 Doc ID 14587 Rev 8

21.6 I

C interrupts

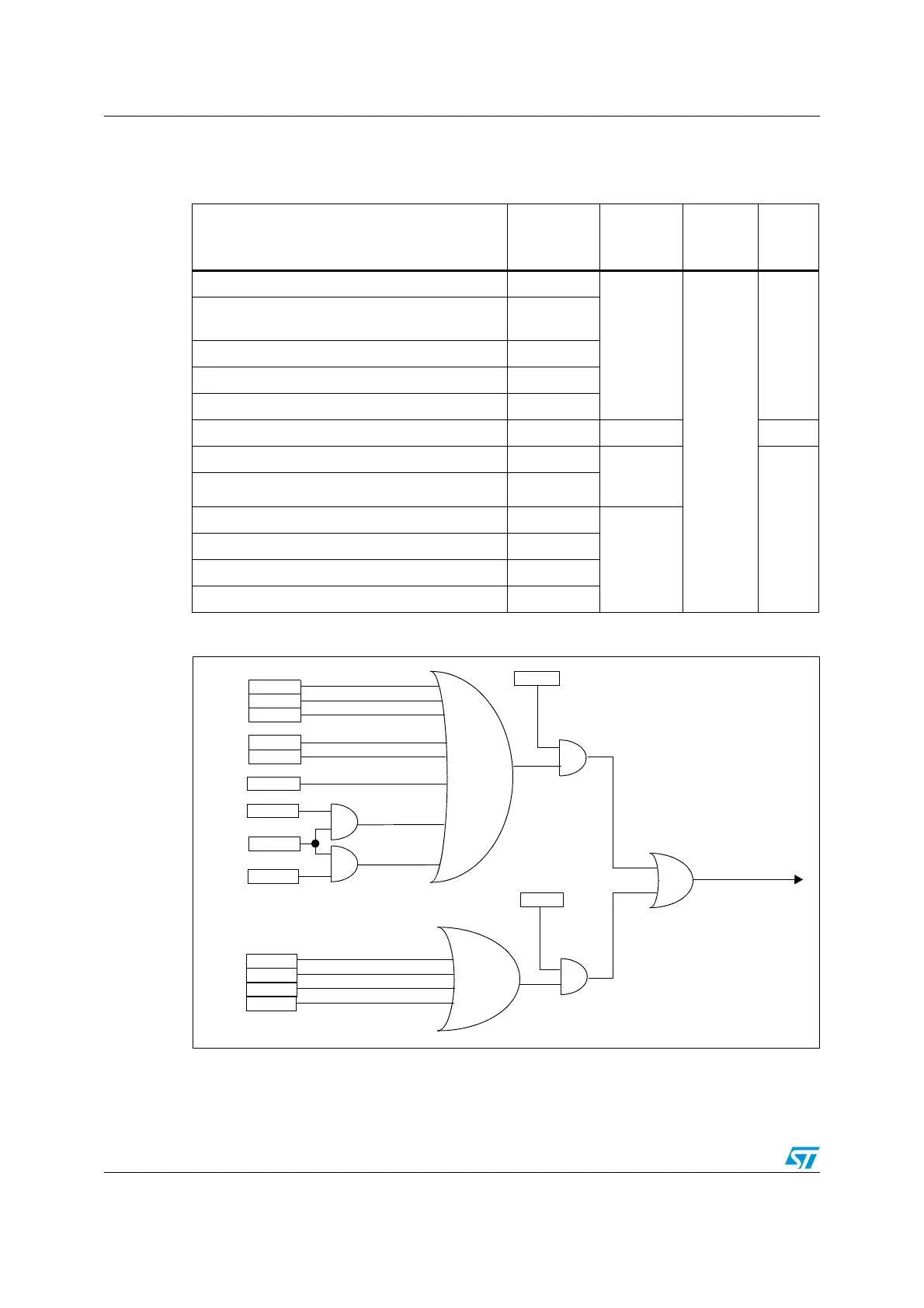

Figure 109. I

C interrupt mapping diagram

Table 49. I

C Interrupt requests

Interrupt event

Event

flag

Enable

control

bit

Exit

from

Wait

Exit

from

Halt

Start bit sent (Master) SB

ITEVTEN

Ye s

Address sent (Master) or Address matched

(Slave)

ADDR

10-bit header sent (Master) ADD10

Stop received (Slave) STOPF

Data byte transfer finished BTF

Wakeup from Halt WUFH ITEVTEN Yes

Receive buffer not empty RXNE ITEVTEN

and

ITBUFEN

Transmit buffer empty TXE

Bus error BERR

ITERREN

Arbitration loss (Master) ARLO

Acknowledge failure AF

Overrun/underrun OVR

ADDR

ADD10

WUFH

it_event

ARLO

BERR

OVR

ITERREN

it_error

ITEVTEN

STOPF

RXNE

TXE

BTF

ITBUFEN
