RM0016 Inter-integrated circuit (I
2
C) interface
Doc ID 14587 Rev 8 283/449

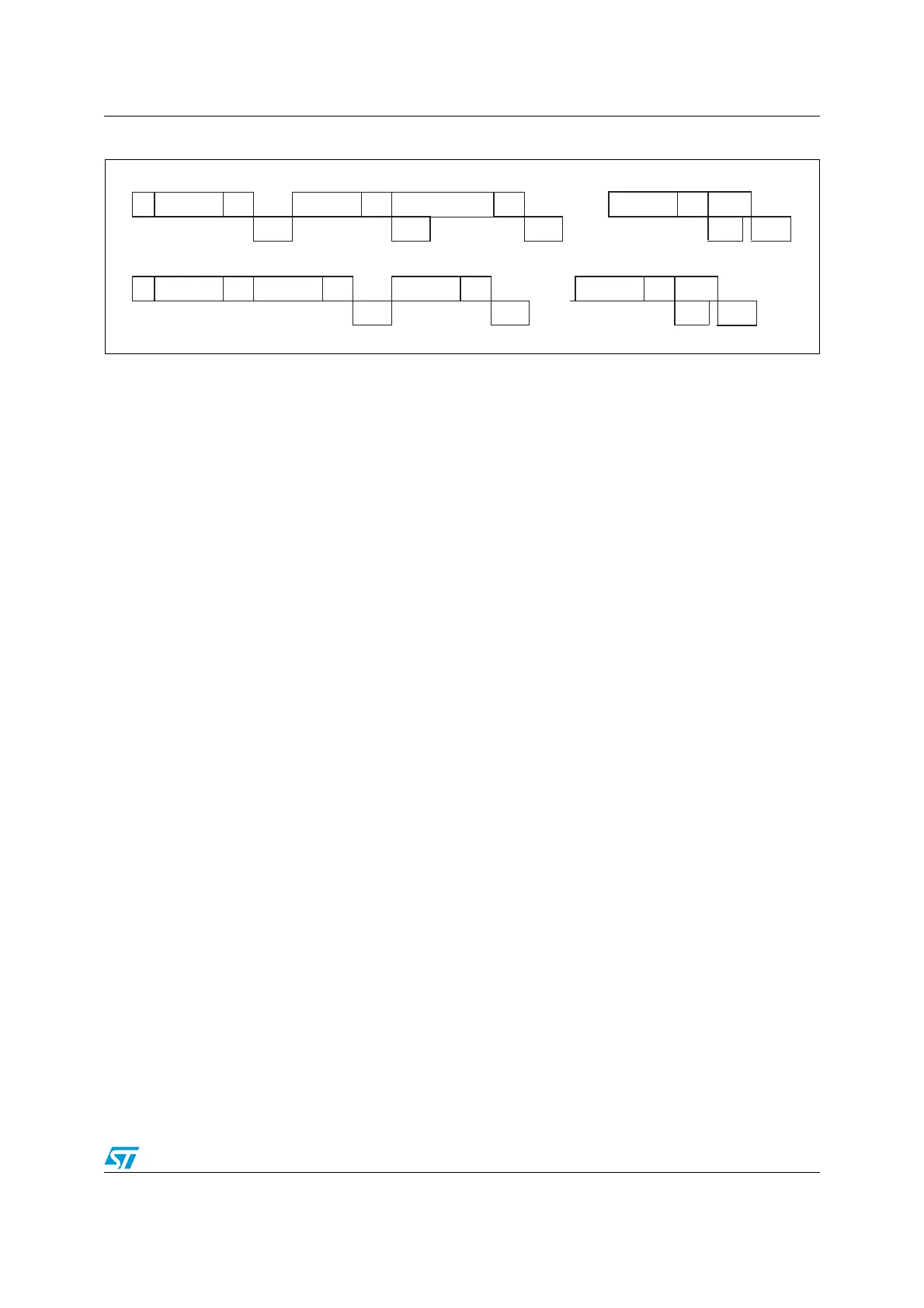

Figure 103. Transfer sequence diagram for slave receiver
1. Legend:
S= Start, S
r
= Repeated Start, P= Stop, A= Acknowledge, NA= Non-acknowledge, EVx= Event (with interrupt if
ITEVTEN=1)
EV1: ADDR =1, cleared by reading SR1 register followed by reading SR3.
EV2: RXNE=1, cleared by reading DR register.
EV4: STOPF=1, cleared by reading SR1 register followed by writing CR2 register
2. EV1 event stretches SCL low until the end of the corresponding software sequence.
3. EV2 software sequence must be performed before the end of the current byte transfer.
4. After checking the SR1 register content, the user should perform the complete clearing sequence for each flag found set.
Thus, for the ADDR and STOPF flags, the following sequence is recommended inside the I2C interrupt routine:
READ SR1
if (ADDR == 1) {READ SR1; READ SR3}
if (STOPF == 1) {READ SR1; WRITE CR2}
The purpose is to make sure that both ADDR and STOPF flags are cleared if both are found set.
5. See also: Note 8 on page 300.
Closing slave communication
After the last data byte is transferred, a Stop condition is generated by the master. The
interface detects this condition and sets the STOPF bit and generates an interrupt if the
ITEVTEN bit is set.
STOPF is cleared by a read of the SR1 register followed by a write to the CR2 register (see
Figure 104).
21.4.2 I
2
C master mode
In Master mode, the I
2
C interface initiates a data transfer and generates the clock signal. A
serial data transfer always begins with a Start condition and ends with a Stop condition.
Master mode is selected as soon as the Start condition is generated on the bus with a
START bit.
The following is the required sequence in master mode.
● Program the peripheral input clock in I2C_FREQR Register in order to generate correct
timings.
● Configure the clock control registers
● Configure the rise time register
● Program the I2C_CR1 register to enable the peripheral
● Set the START bit in the I2C_CR2 register to generate a Start condition
The peripheral input clock frequency must be at least:
● 1 MHz in Standard mode
● 4 MHz in Fast mode
7-bit slave receiver
10-bit slave receiver
S Address AData1AData2A
.....
DataNA
P
EV1 EV2 EV2 EV2 EV4
S Header A Address AData1A
.....
DataNA P
EV1 EV2 EV2
EV4
ai18208
