Universal asynchronous receiver transmitter (UART) RM0016
316/449 Doc ID 14587 Rev 8
Single byte communication
Clearing the TXE bit is always performed by a write to the data register.
The TXE bit is set by hardware and it indicates:
● The data has been moved from TDR to the shift register and the data transmission has
started.
● The TDR register is empty.
● The next data can be written in the UART_DR register without overwriting the previous
data.
This flag generates an interrupt if the TIEN bit is set.
When a transmission is taking place, a write instruction to the UART_DR register stores the
data in the TDR register. The data is copied in the shift register at the end of the current
transmission.
When no transmission is taking place, a write instruction to the UART_DR register places
the data directly in the shift register, the data transmission starts, and the TXE bit is
immediately set.
If a frame transmission is complete (after the stop bit) and the TXE bit is set, the TC bit is
set. An interrupt is generated if the TCIEN is set in the UART_CR2 register. After writing the
last data in the UART_DR register, it is mandatory to wait until TC is set to ‘1’ before
entering Halt mode or disabling the UART (see Figure 115: TC/TXE behavior when
transmitting).
The following software sequence is required to clear the TC bit:
1. Read from the UART_SR register
2. Write to the UART_DR register

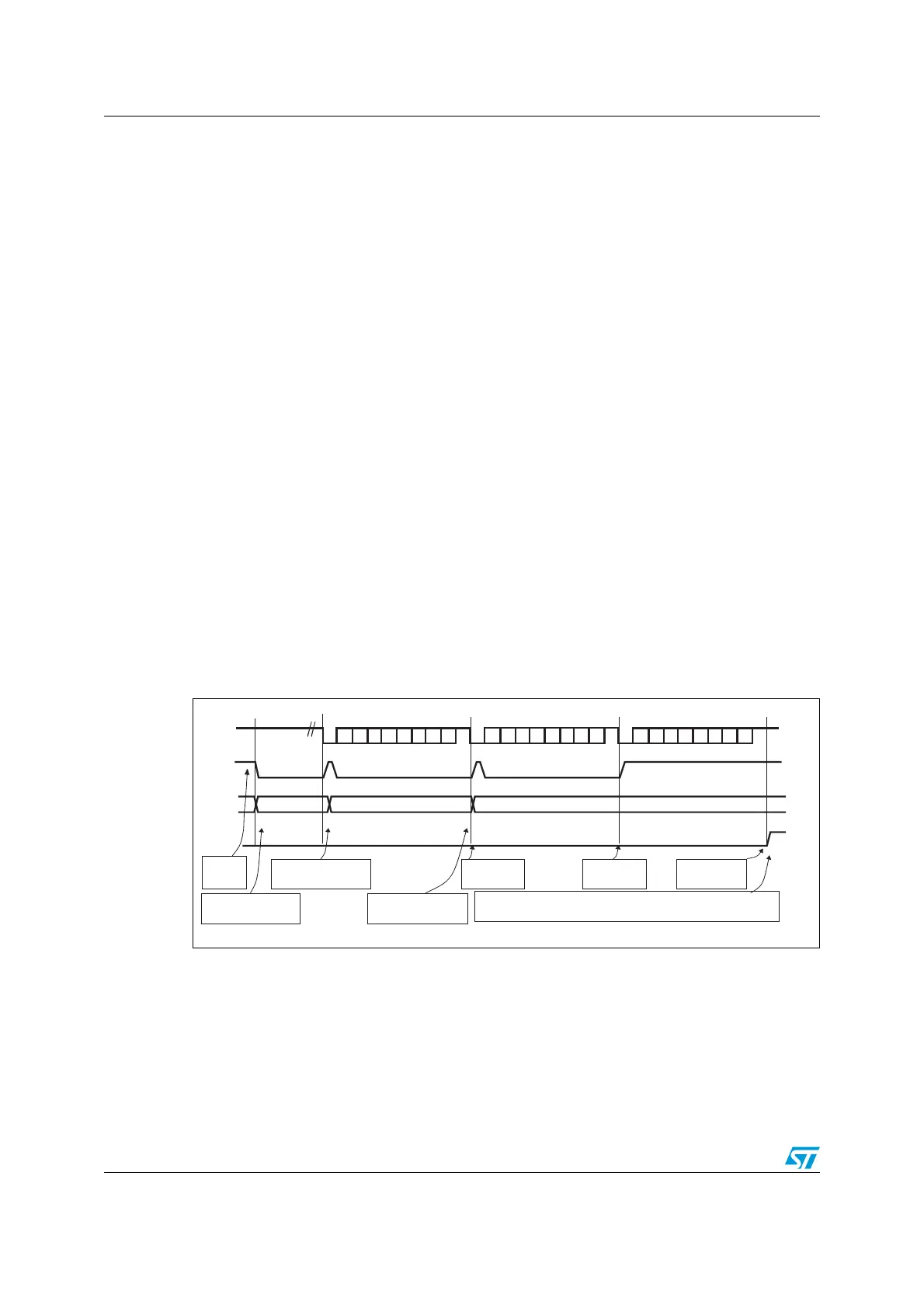

Figure 115. TC/TXE behavior when transmitting
1. This example assumes that several other transmissions occur after TE has been set.
Note: The TC bit can also be cleared by writing a ‘0’ to it. This clear sequence is recommended
only for multibuffer communication.
TX line
USART_DR
Frame 1
TXE flag
F2
TC flag
F3
Frame 2
Software waits until TXE = 1
and writes F2 into DR
Software waits until TXE = 1
and writes F3 into DR
TC is not set
because TXE = 0
Software waits until TC = 1
Frame 3
TC is set because
TXE = 1
Set by hardware and
cleared by software
Set by hardware and
cleared by software
Set by hardware
Set
Idle preamble
by hardware
F1
Software
enables the
USART
TC is not set
because TXE = 0
Software waits until TXE = 1
and writes F1 into DR
ai17121b
