Window watchdog (WWDG) RM0016

128/449 Doc ID 14587 Rev 8

15.4 How to program the watchdog timeout

The formula below can be used to calculate the WWDG timeout, t

WWDG

, expressed in ms:

where T

CPU

is the peripheral clock period expressed in ms

Warning: When writing to the WWDG_CR register, always write 1 in the

T6 bit to avoid generating an immediate reset.

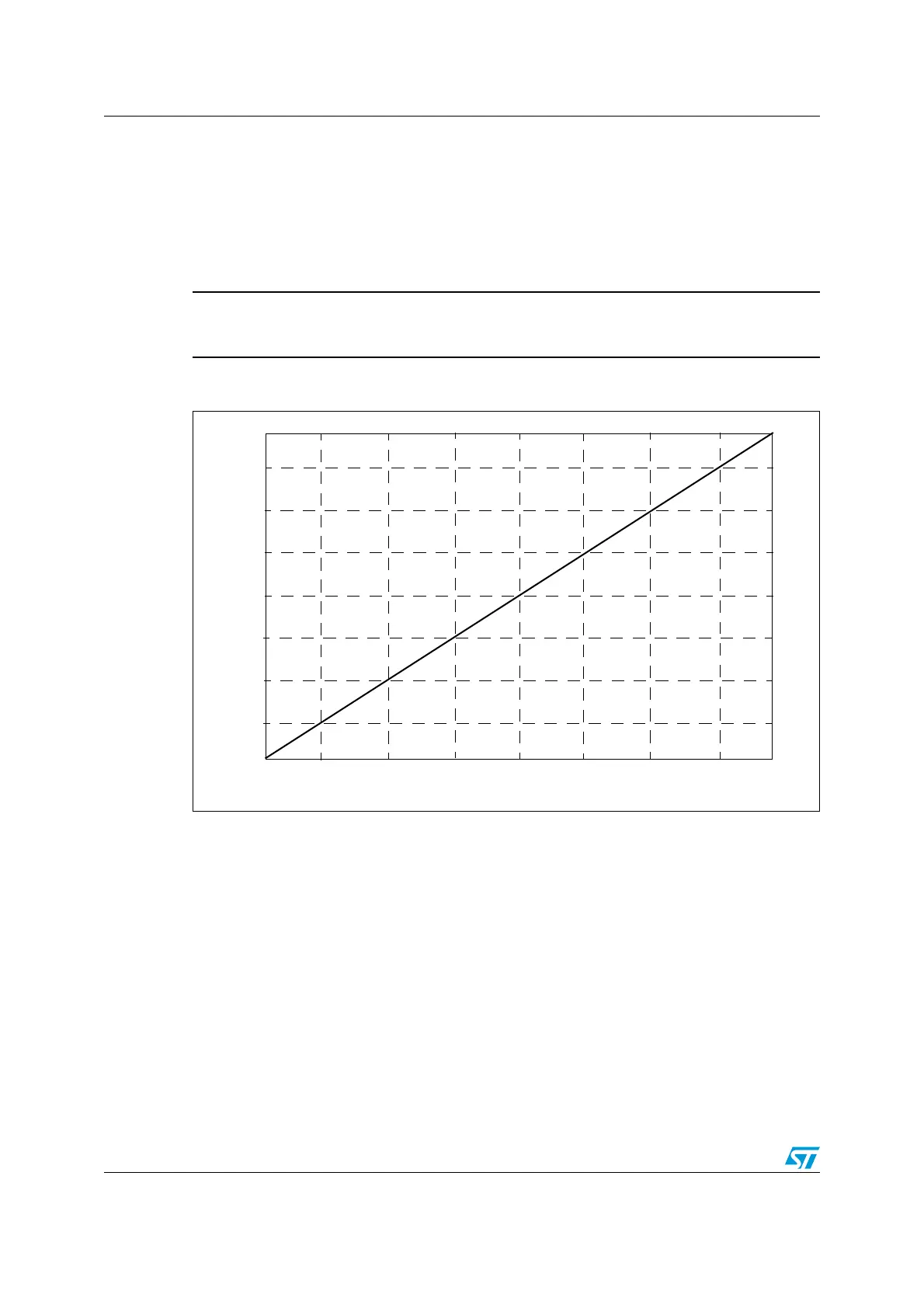

Figure 29. Approximate timeout duration

WWDG

CPU

12288× T5:0[]1+()×=

CNT value (hex.)

Watchdog timeout (ms) @ 16 MHz f

CPU

49.152

0.768 24.576

18.43212.2886.144 30.72 36.864 43.008

Default Chapter2
