Toshiba e-STUDIO4500c Service Manual

September 2006 Replacement and Adjustment
B706-21
Peripherals

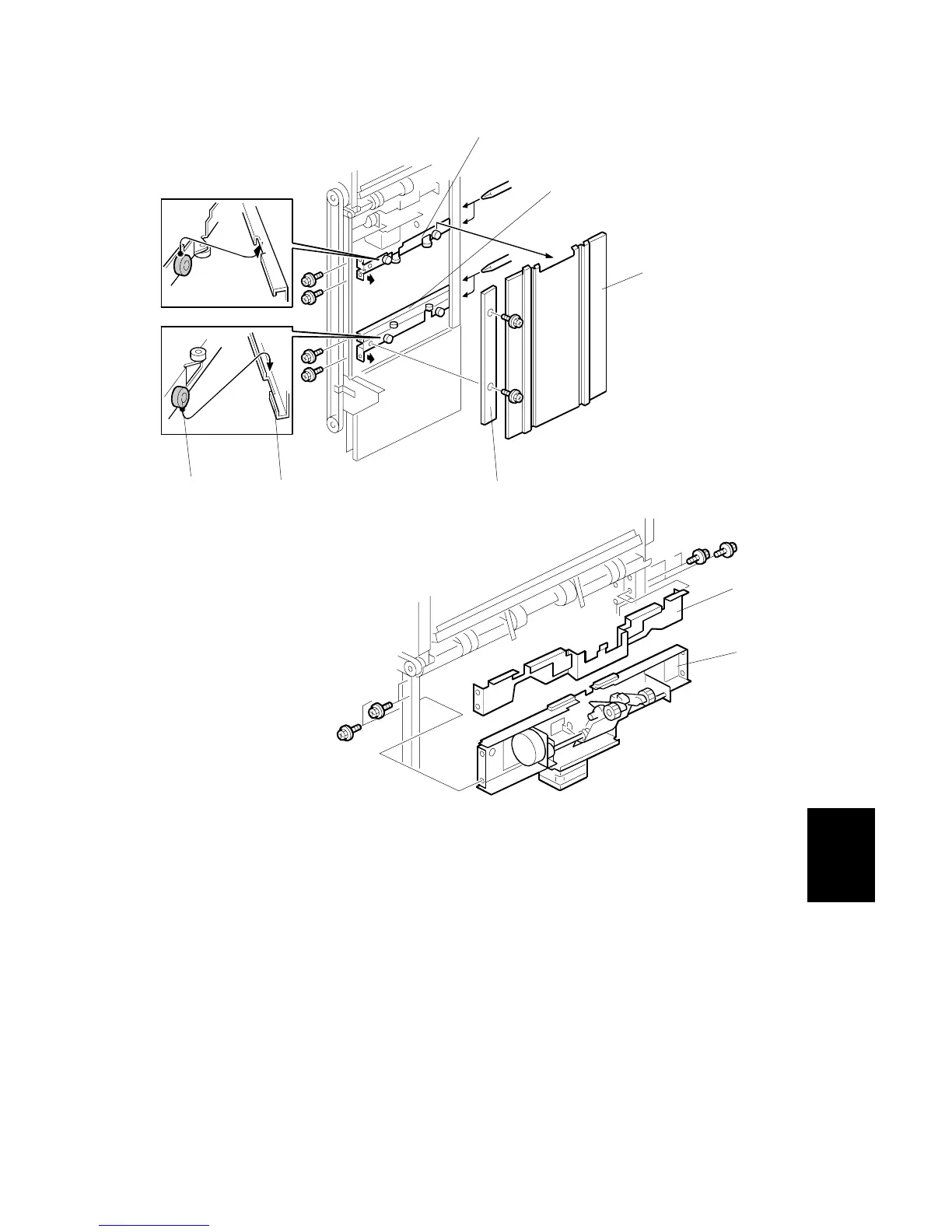

6. Remove the end fence [A] and plate [B] ( x 2).
7. Disengage the end fence races [C] from the rollers [D] behind the fence.
8. Remove the upper stay [E] ( x 4).
9. Remove the lower stay [F] ( x 4).
10. Remove the cover [G] ( x 4).
11. Remove the stacking roller/drag motor stay [H] ( x 3,  x4).
NOTE: Make sure the motor and sensor connectors are disconnected before
removing.
B478R527.WMF
B478R528.WMF
[A]
[E]
[F]
[G]
[H]
[D]
[C]
[B]
