Toshiba e-STUDIO4500c Service Manual

REPLACEMENT AND ADJUSTMENT September 2006
B706-22

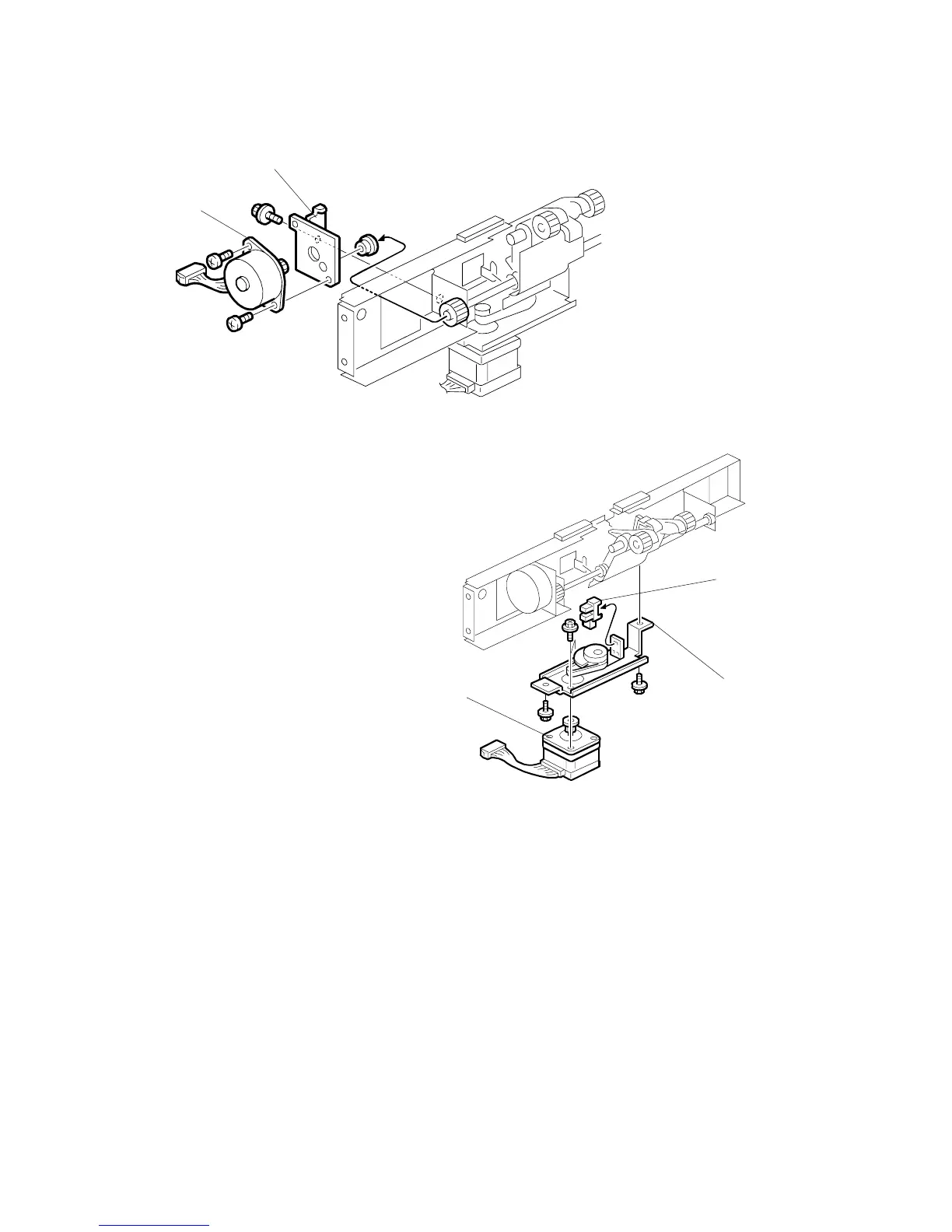

12. Remove the stacking motor bracket [A] (bushing x 1,  x 1).
13. Remove the stacking motor [B] ( x 2).
14. Remove the roller drag motor bracket [C] ( x 2).
15. Remove return HP sensor [D].
16. Remove the roller drag motor [E] ( x 1).
B478R530.WMF
B478R529.WMF
[A]
[B]
[C]
[D]
[E]
06/09
