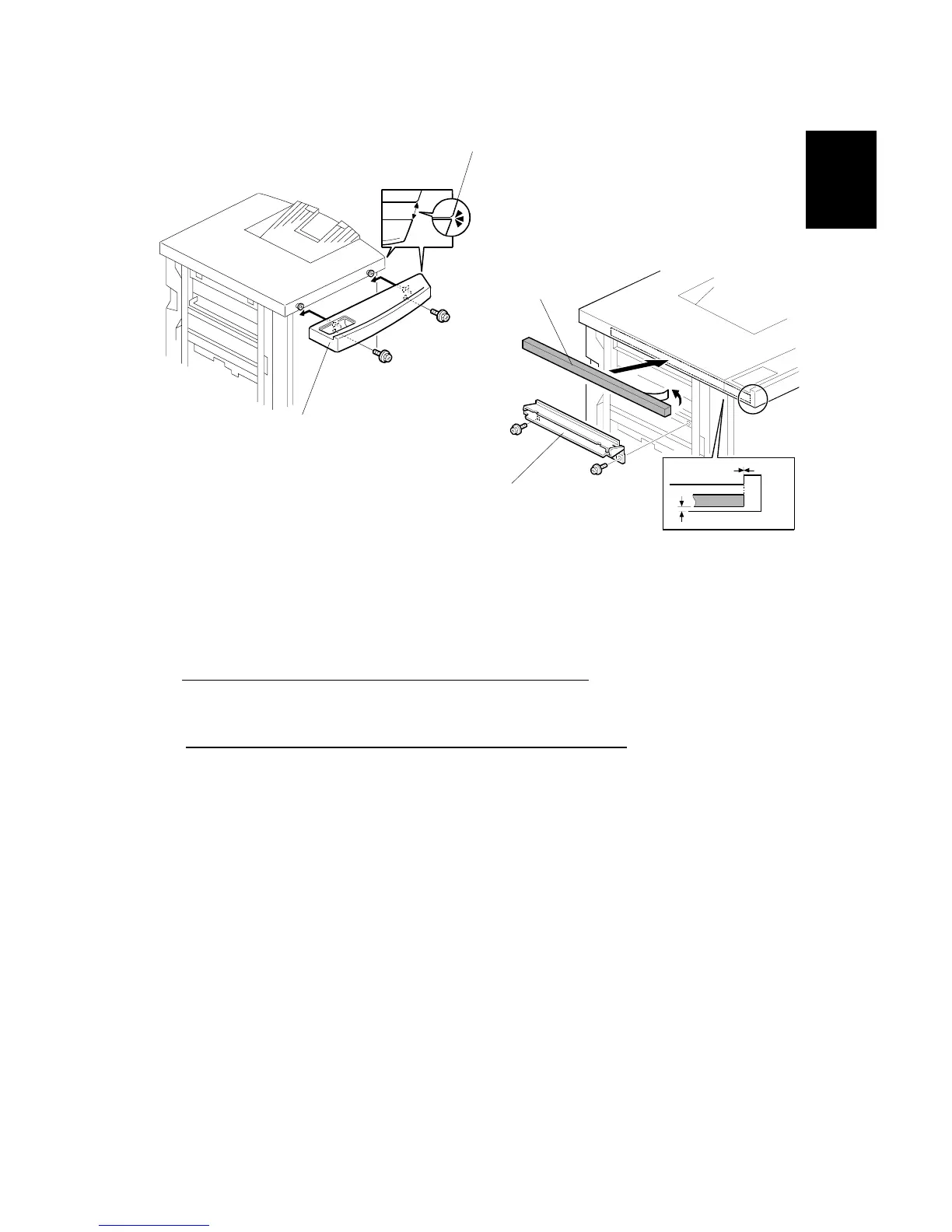

5. Install the table extension [A] ( x 2) (M4 x 8).
6. Make sure that the edge of the table extension is aligned with the edge of the
finisher [B].
7. If you will not install the Cover Interposer Tray B704:
• Remove the strip from the sponge cushion [C], and attach it to the finisher.
• Attach the entrance guide plate [D] ( x 2) (M3 x 6).
If you are going to install the Cover Interposer Tray B704
:
• Do not attach the sponge cushion [C].
• Do not attach the entrance guide plate [D] to the finisher.
• Install the interposer tray before you dock the finisher to the copier. Then
come back to the procedure for the B706 finisher, and continue from
‘Selecting the Staple Supply Name’.
B706I005.WMF
B706I207.WMF
[A]
To Next Page
