3000-SHEET FINISHER (B706), FINISHER ADAPTER (B698) August 2006
1-92

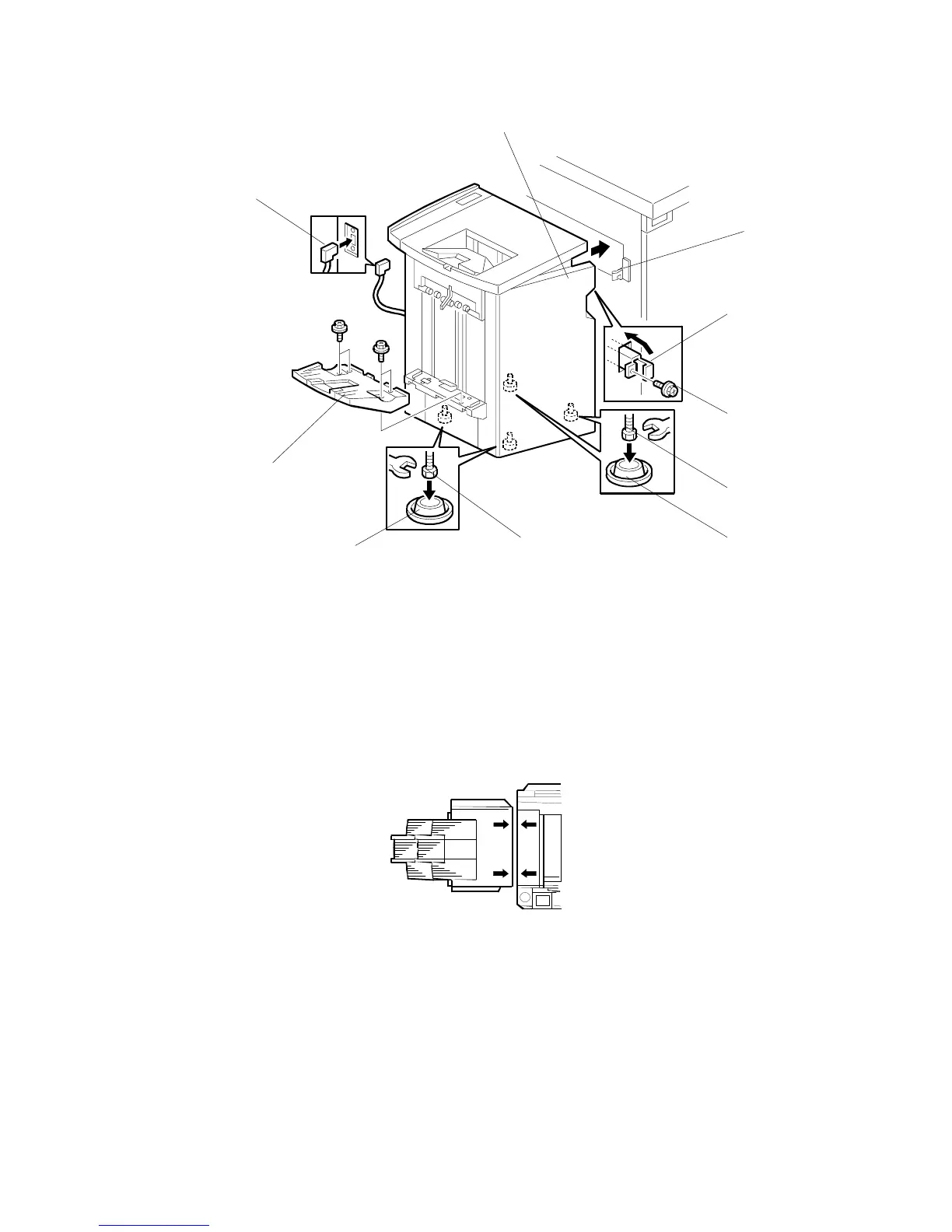

8. Attach the shift tray [A] ( x 4) (M3 x 8).
9. Open the front door [B] of the finisher.
10. Remove the screw [C] from the lock lever [D], then pull out the lock lever.
11. Align the finisher on the joint brackets [E] and push the finisher against the side
of the copier.
12. Make sure that the top edges of the finisher and the copier are parallel from
front to rear as shown below:
13. Set the leveling shoes [F] (x4) below the feet [G].
14. Use a wrench to adjust the height of the feet [G] to make the machine level.
15. Push in the lock lever [D], attach it ( x 1), then close the front door.
16. Connect the finisher cable [H] to the copier.
B706I006.WMF
To Next Page
