14. Connect the PCB harness connector [A] to CN129 of the finisher PCB and to
CN600 of the punch unit PCB.
15. Connect the HP Sensor-2 harness connector [B] to CN130 of the finisher PCB
and to HP Sensor-2.

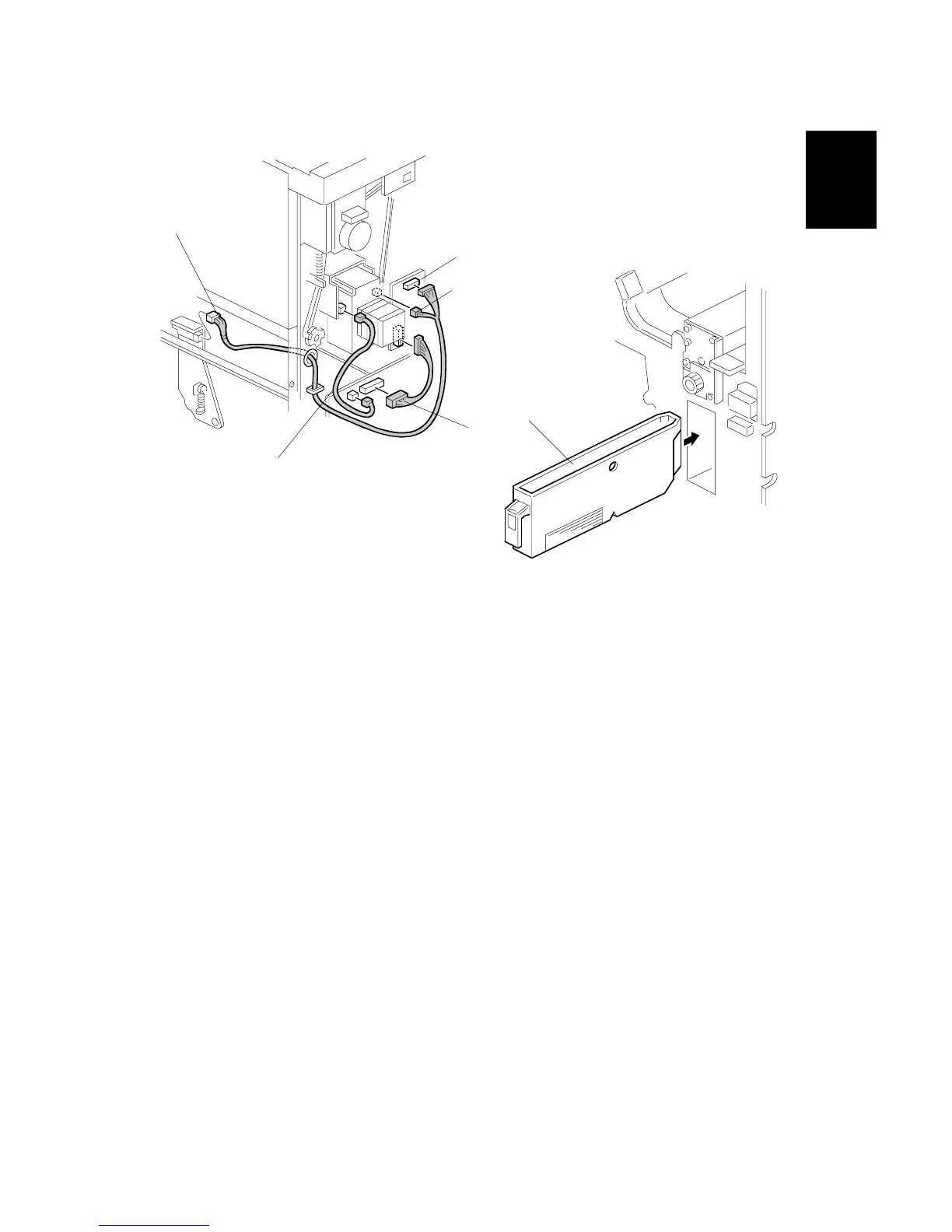

16. Connect the end of the hopper-full-sensor cable that has one connector [C] to
the hopper full sensor on the arm ( x 1, clamp x 1). Then connect the other
two connectors to HP Sensor-1 [D] and CN620 [E] of the punch PCB.
NOTE: No special DIP switch settings are necessary for this punch unit. The
punch unit sends an identification signal to the machine. Then the
machine knows the type of punch unit that is installed.
17. Put the punch waste hopper [F] in the finisher.
18. Attach the inner cover and rear cover.
19. Close the front door and connect the finisher to the machine.
B531I007.WMF
B531I008.WMF
[F]
