Toshiba e-STUDIO4500c Service Manual

COMMON REMOVAL PROCEDURES August, 2006
3-16

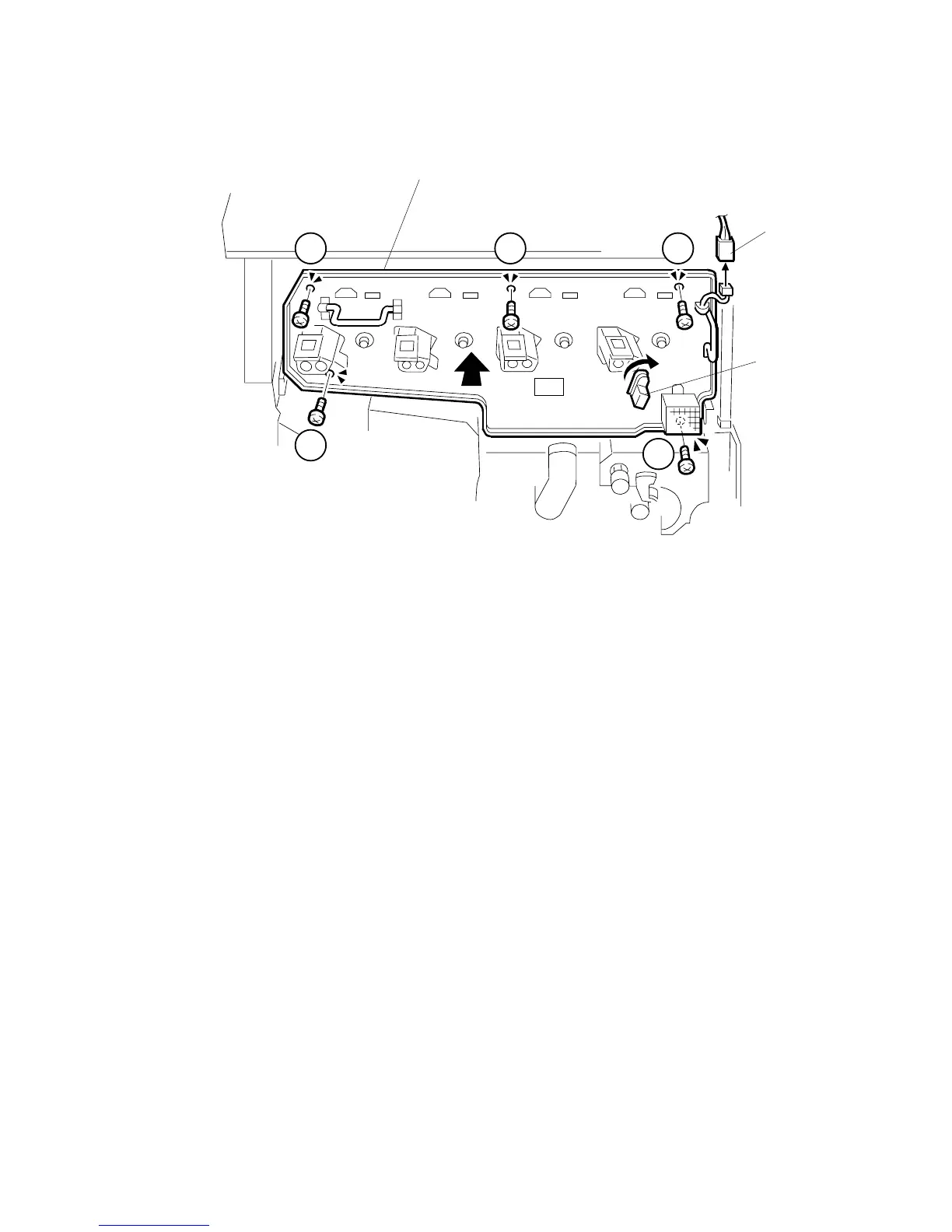

To reinstall the face plate:
1. When you reattach the face plate [A], fasten the screws in the order shown by
the numbers above ( x5).
Important: Do not over tighten these screws.
2. Rotate the transfer belt release lever [B] clockwise to lock it.
3. Reconnect the fan connector [C] ( x1).
142
5
3
B132I115.WMF
[A]
[B]
[C]
