Toshiba e-STUDIO4500c Service Manual

LASER UNIT August, 2006
3-38

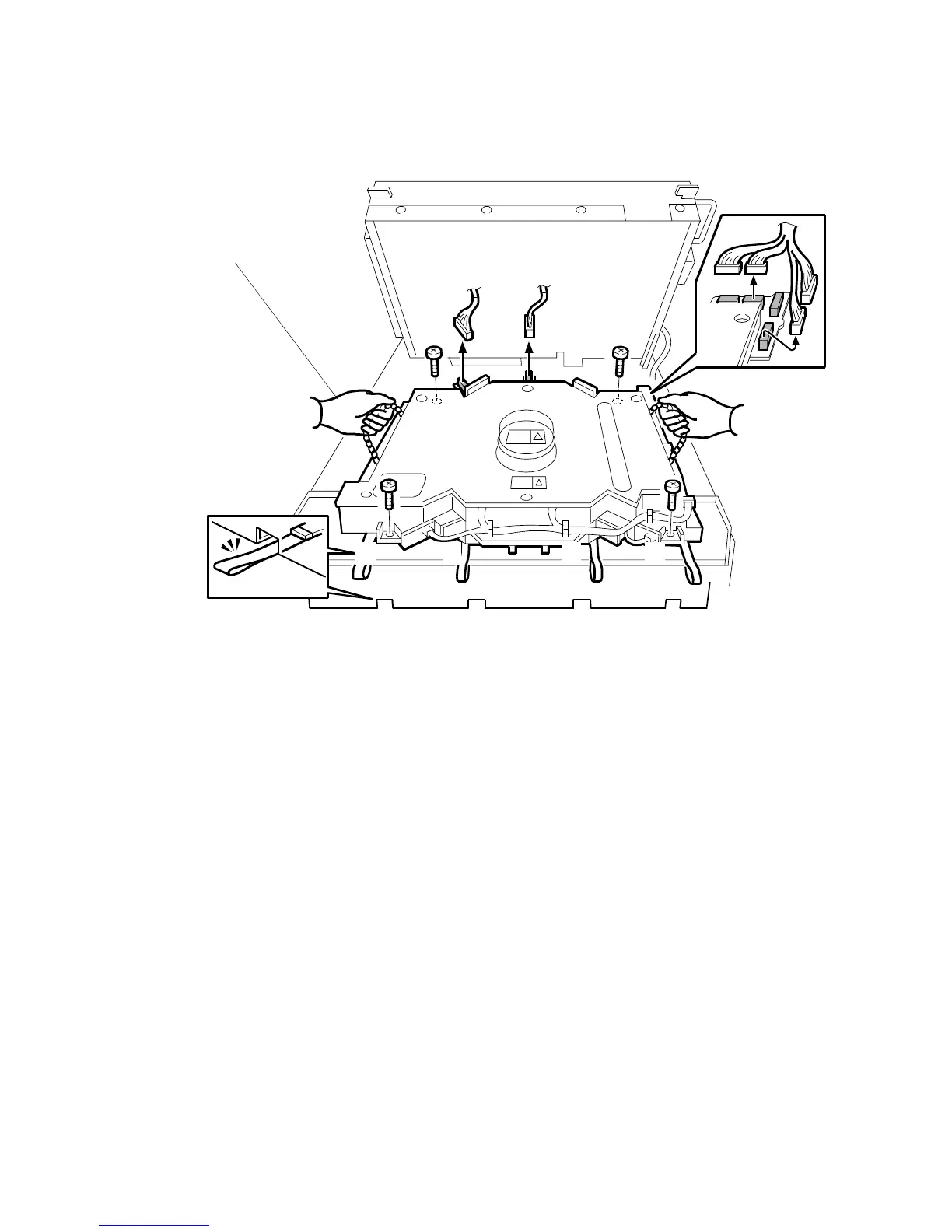

Remove:
[A]: Laser unit ( x4,  x6)
NOTE: The laser unit includes four LD sub units. However, the LD sub units cannot
be replaced separately because factory adjustment is required.
Reinstallation
• Make sure that the four tapes , , ,  are set correctly in the holes.
• Be sure to reconnect the ground wire ([C] on the previous page).
B132R003.WMF
[A]




