IMAGE TRANSFER UNIT August, 2006
3-76

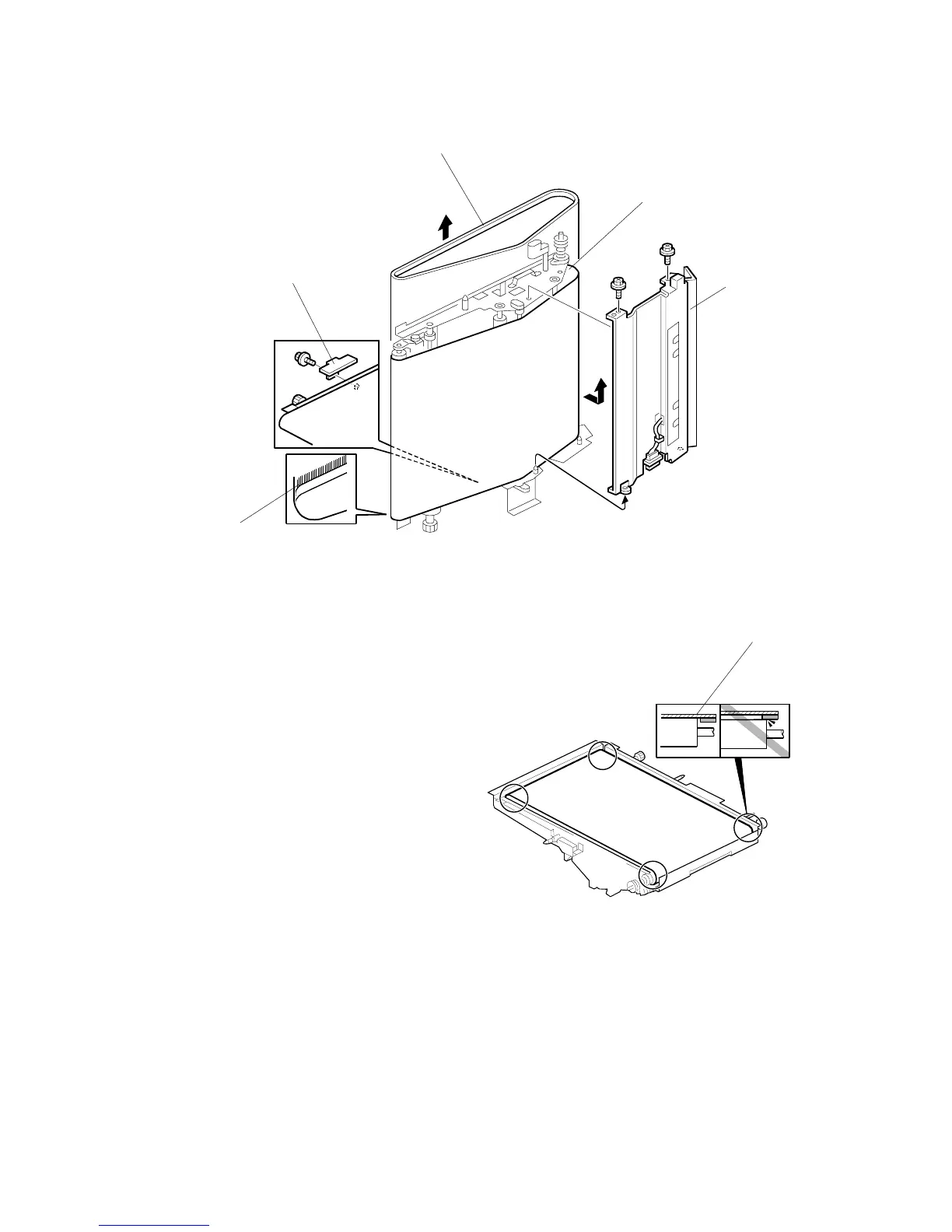

Remove:
[A]: Encoder sensor bracket ( x1)
[B]: Set the image transfer unit on its front side up.
[C]: ID sensor / MUSIC sensor plate ( x2, x1)
[D]: ITB
Important
• When you install the new ITB, the
edge of the belt with the encoder film
strip must be at [E]. The encoder
must be at the rear side.
• The encoder edge of the ITB is silver.
• Be sure to reattach the ID sensor /
MUSIC sensor plate [C] before you
reassemble the ITB ( x2, x1).
• Make sure that the belt flange [F]
does not touch the roller edge.
B132R314.WMF
B132R317A.WMF
