Toshiba e-STUDIO4500c Service Manual

IMAGE TRANSFER UNIT August, 2006
3-78

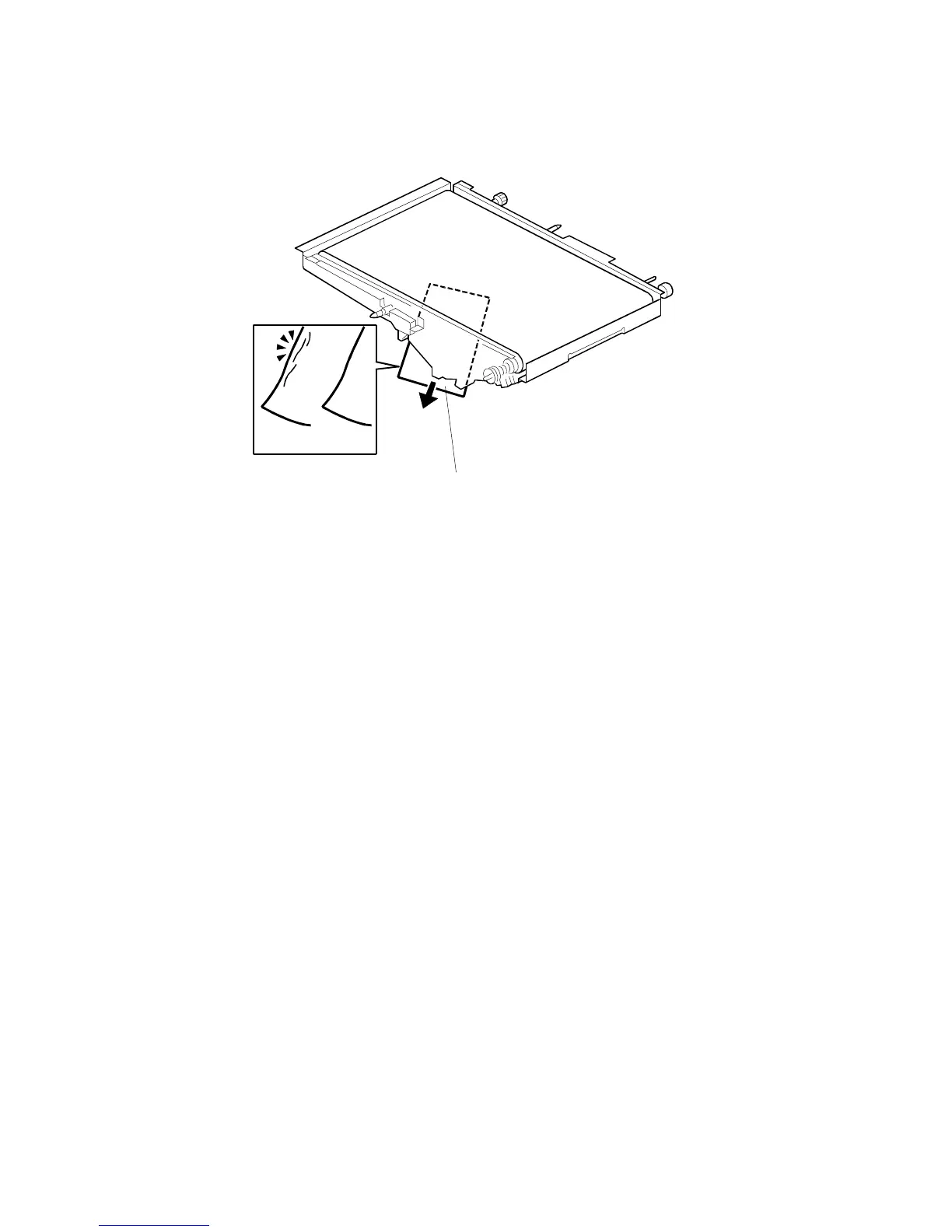

5. Pull out the paper [A] slowly.
6. Check the paper.
If the paper is unmarked, go to the next step.
-or-
If the paper is creased or torn, separate the image transfer belt and cleaning
unit. Inspect the seal. If the seal is damaged, replace it.
NG OK
B132R317.WMF
[A]
