August, 2006 SCANNER UNIT

6-31

Detailed

Descriptions

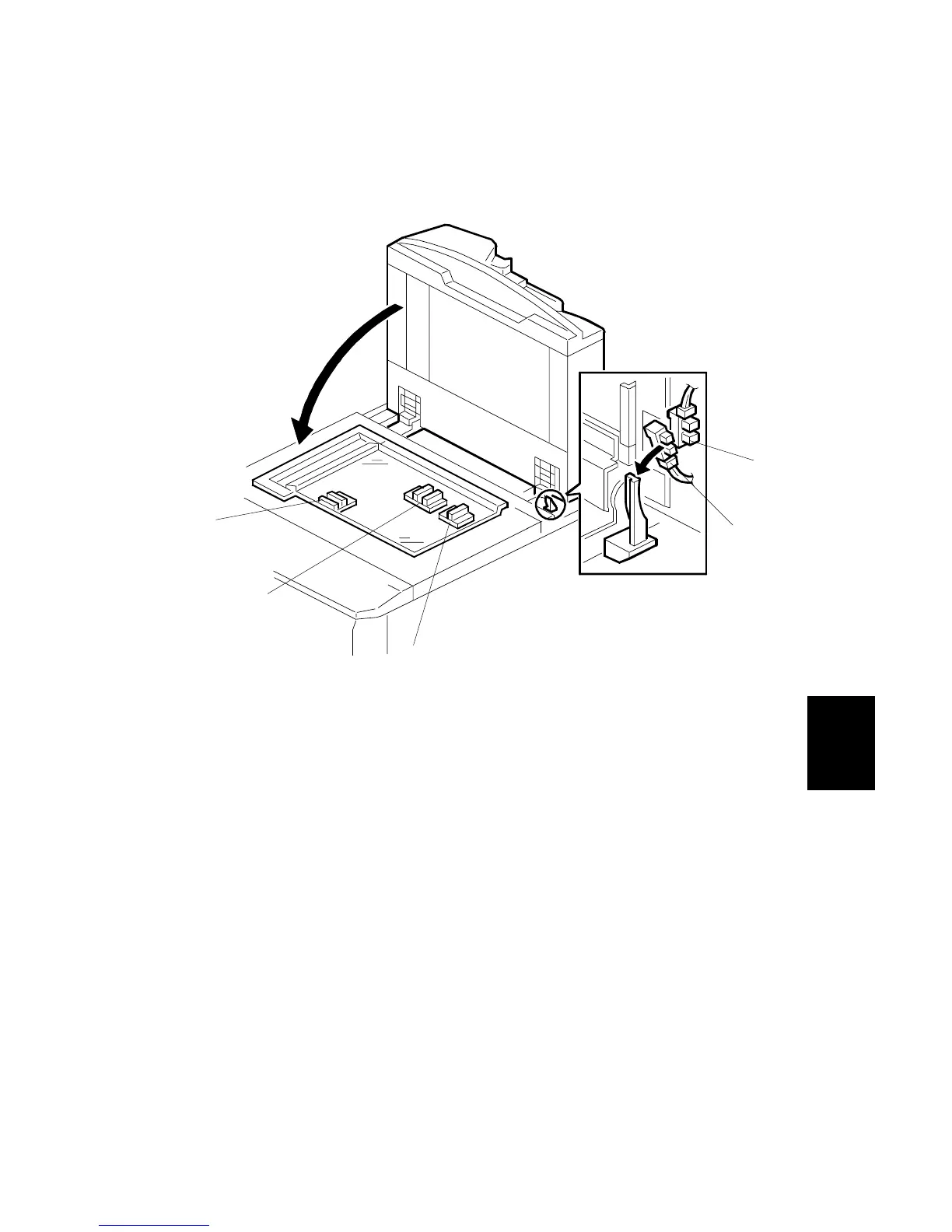

6.5.2 ORIGINAL SIZE DETECTION

The machine uses five sensors on three APS boards to detect the size of the

original on the exposure glass.

[A]: APS1. (W1 and W2) detects original width

[B]: APS2. (L1 and L2) detects original length

[C]: APS3. (L3) detects original length

[D]: ARDF position sensor. Detects whether the ARDF is open or closed.

[E]: APS start sensor. Triggers automatic paper size detection.

B132D102.WMF

[A]

[B]

[C]

[D]

[E]
