Toshiba e-STUDIO4500c Service Manual

LCT (B473), LCT ADAPTER (B699) August, 2006
1-58

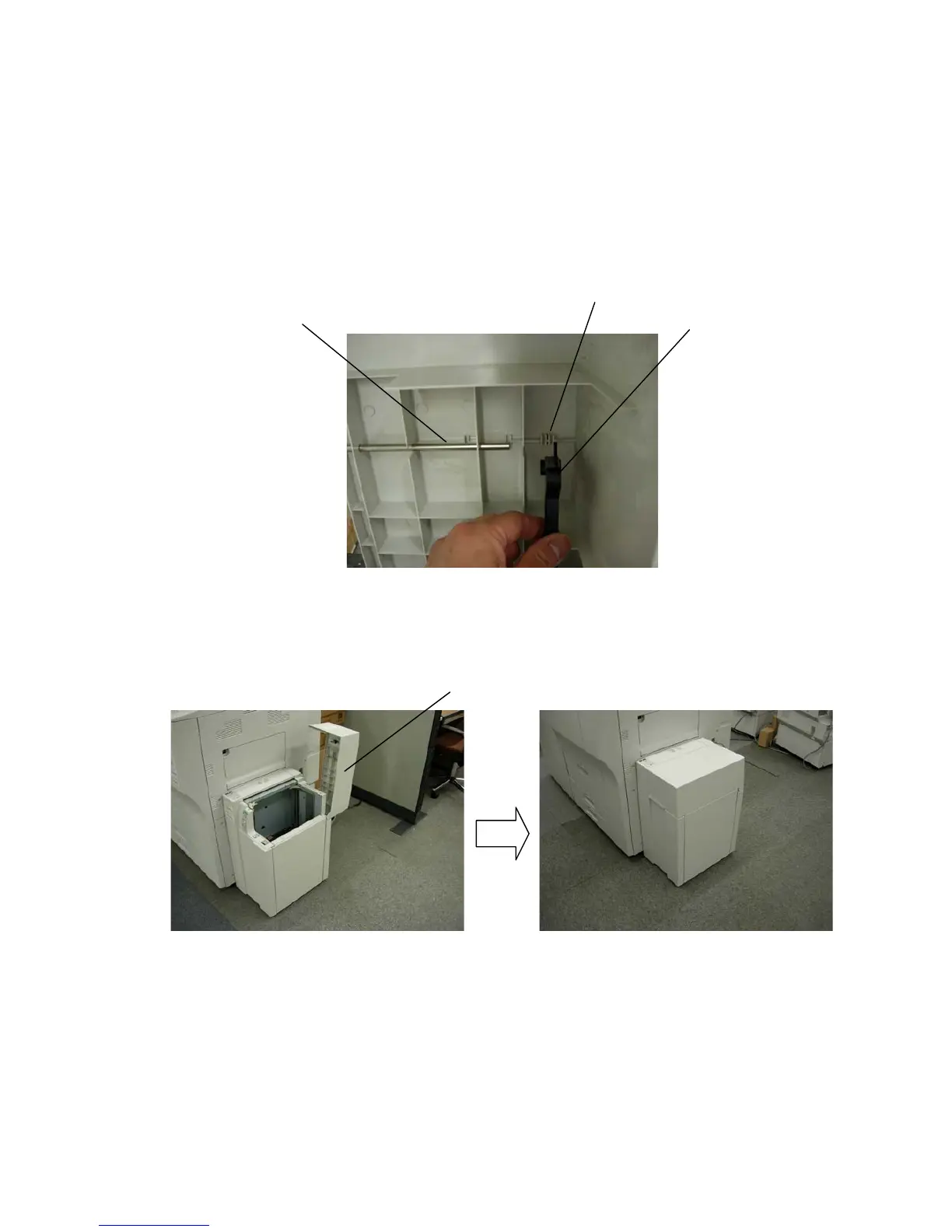

6. Move the LCT end fence [I] from the A4 position to the 81/2" x 11" (LT) position.
7. Insert the shaft [H] (1 snap ring).
NOTE: NOTE: The various end fence positions are written on the LCT top
cover [J].
8. Close the LCT top cover [K].
9. Set Sp5959-005 to a value of 1 (for 81/2" x 11" (LT)).
[H]
[I]
[J]
[K]
