Toshiba e-STUDIO4500c Service Manual

August, 2006 LCT (B473), LCT ADAPTER (B699)
1-57
Installation

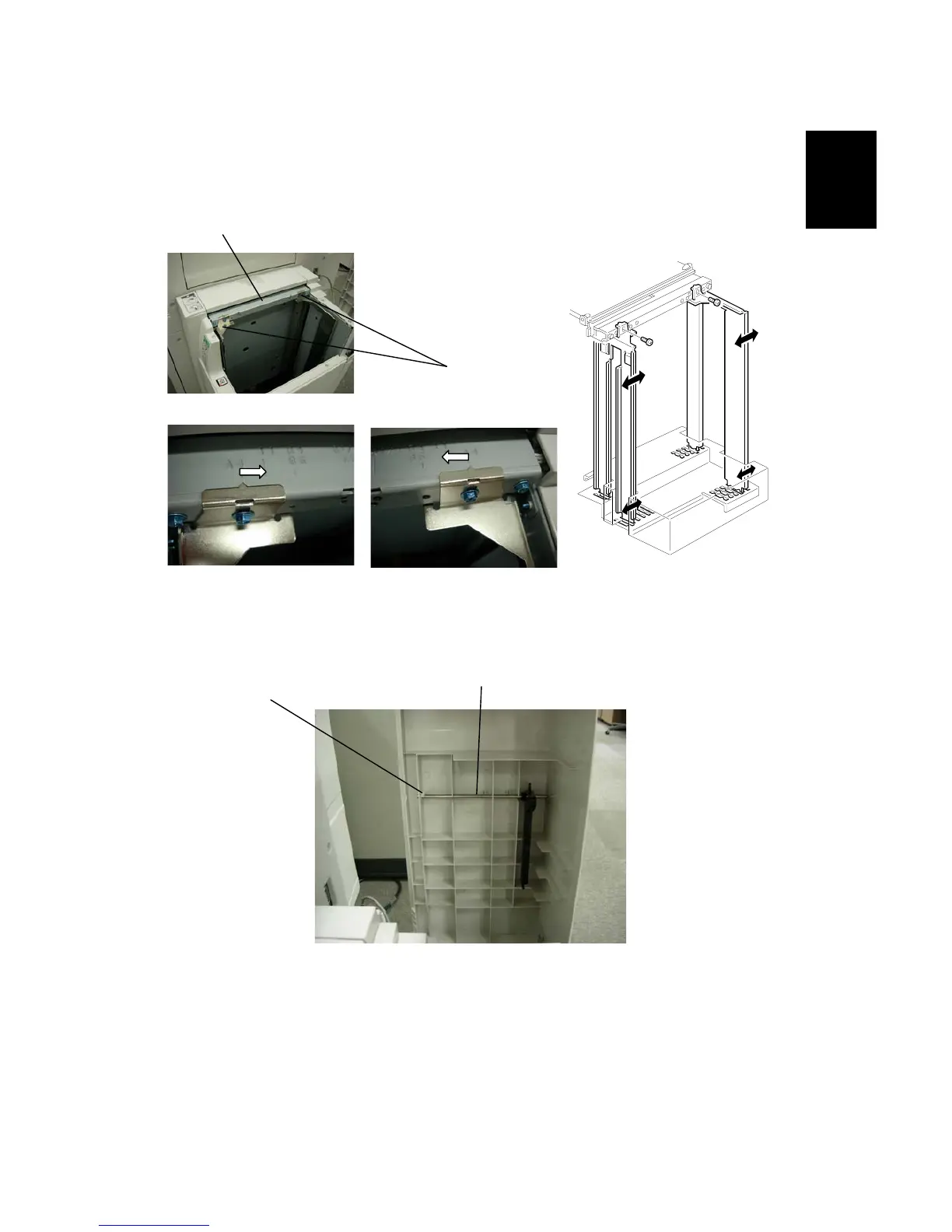

4. Move the side fence brackets [E] from the A4 position to the 81/2" x 11" (LT)
position (1 screw for each bracket).
NOTE: The various side fence positions are written on the bracket [F].
5. Remove the shaft [H] from the backside of the LCT top cover (1 snap ring [G]).
[E]
[F]
[G]
[H]
