S2VNA and S4VNA SCPI Programming Manual
For remote access to the analyzer it is necessary to make the following settings in
its program:
ï‚· Enable HiSLIP server and/or Socket server;
ï‚· Configure the TCP/IP port number (optional).
Configuring the TCP/IP port number is necessary in the only case where several
analyzer programs are simultaneously executed on the same computer, and these
programs require remote remote control. In other cases, you should leave the
default TCP/IP port number: for the HiSLIP server - 4880, and for the Socket server
– 5025.

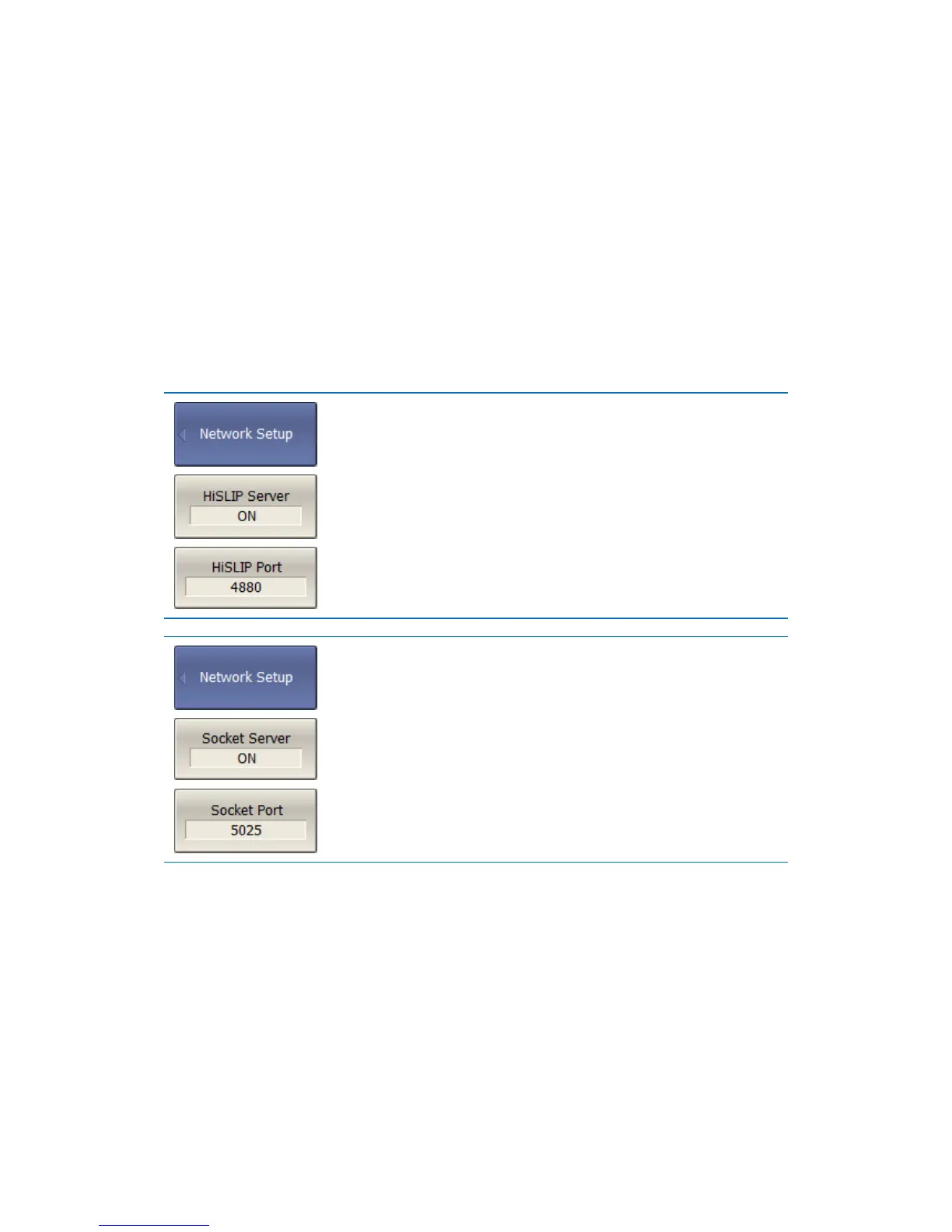

To enable remote control of the analyzer using the
HiSLIP protocol, press the following softkeys:
System > Misc Setup > Network Setup > HiSLIP Server
[ON/OFF].
To change the TCP/IP port number of the HiSLIP
server, use the following softkeys:
System > Misc Setup > Network Setup > HiSLIP Port.
To enable remote control of the analyzer using the
Socket protocol, press the following softkeys:
System > Misc Setup > Network Setup > Socket Server
[ON/OFF].
To change the TCP/IP port number of the Socket
server, use the following softkeys:
System > Misc Setup > Network Setup > Socket Port.
2.3 Client Setting
If the client is a user program that works through the VISA library, the easiest way
to configure the network connection with the Analyzer is using a special graphical
utility from VISA package (for example, NI-MAX, Keysight Connection Expert).
According to the manual for the above utilities, add a new network device,
specifying the network name or IP address of the Analyzer's computer, and the
protocol. As a result of successful connection to the Analyzer, the VISA address of
